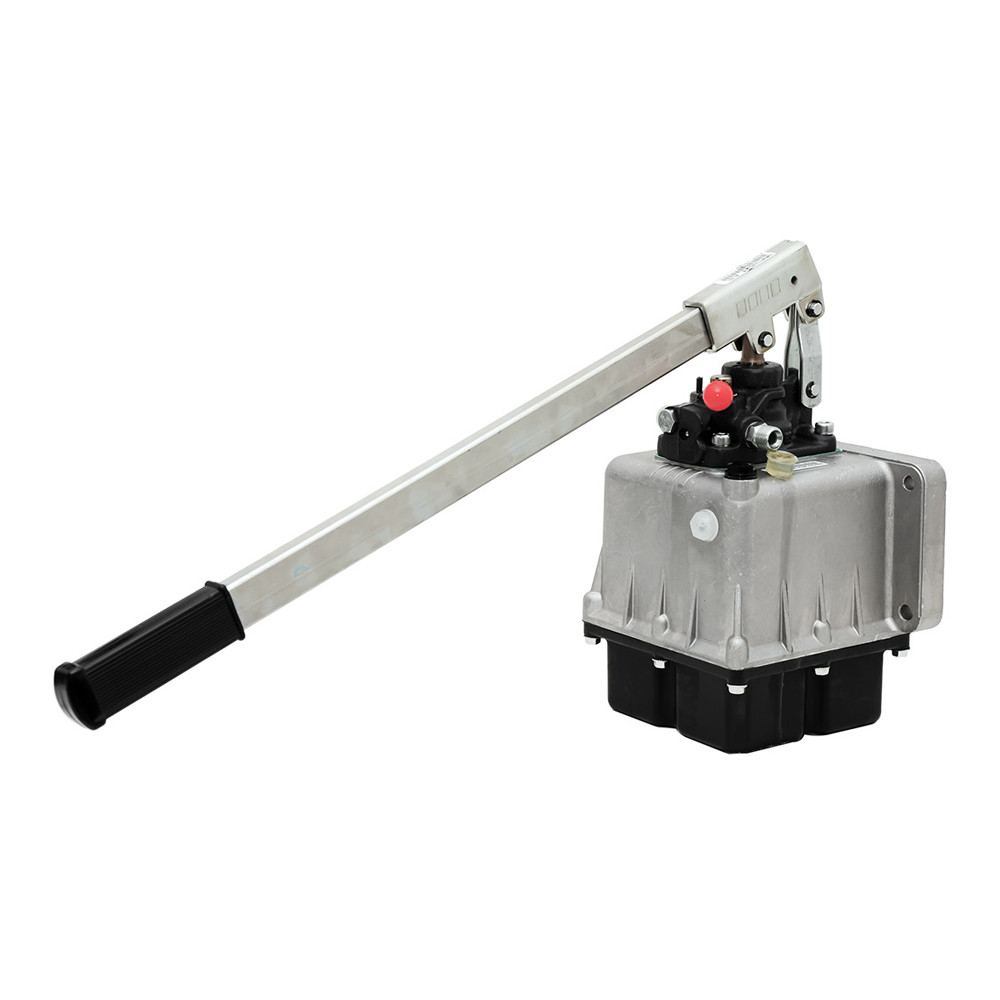

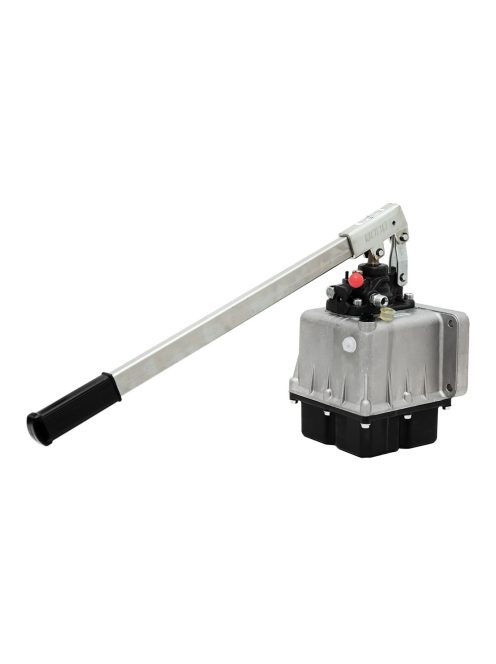

OMFB HYDRAULIC HAND PUMP PMI25+VS+1L TANK

OMFB HYDRAULIC HAND PUMP PMI25+VS+1L TANK
OMFB HYDRAULIC HAND PUMP PMI25+VS+1L TANK
Delivery capacity (cm³/rev; liters/min): 25
Max. pressure (bar): 250
Design: Hand pump
Manufacturer: OMFB
In stock
256+VAT
Item number:
HK_10601100011

The PMI25 VS hydraulic hand pump features a built-in 1-liter oil reservoir, offering a complete and compact solution for manually operating both mobile and stationary hydraulic systems.

Its design is specifically suited for industrial and transport applications where reliability and precise pressure control are essential without relying on external power sources.

The integrated reservoir allows for a closed-loop oil circuit, making installation easier and ensuring cleaner, more efficient operation. It is ideal for manual control of smaller hydraulic cylinders, lifting devices, or directional control valves.

Data
Weight:
4.2 kg/pc(s)
Details

Operating Principle

The hand pump uses a piston actuated by a lever mechanism to apply pressure to the hydraulic oil stored in the built-in reservoir. Once pressurized, the oil flows into the connected system such as a hydraulic cylinder to perform the desired mechanical work. Since the system is closed, the oil returns to the reservoir, offering an environmentally friendly and sustainable long-term solution. This form of manual pressure generation is a simple yet effective method for hydraulic control where electric power is unavailable.

OMFB HYDRAULIC HAND PUMP PMI25+VS+1L TANK
OMFB HYDRAULIC HAND PUMP PMI25+VS+1L TANK
256+VAT
