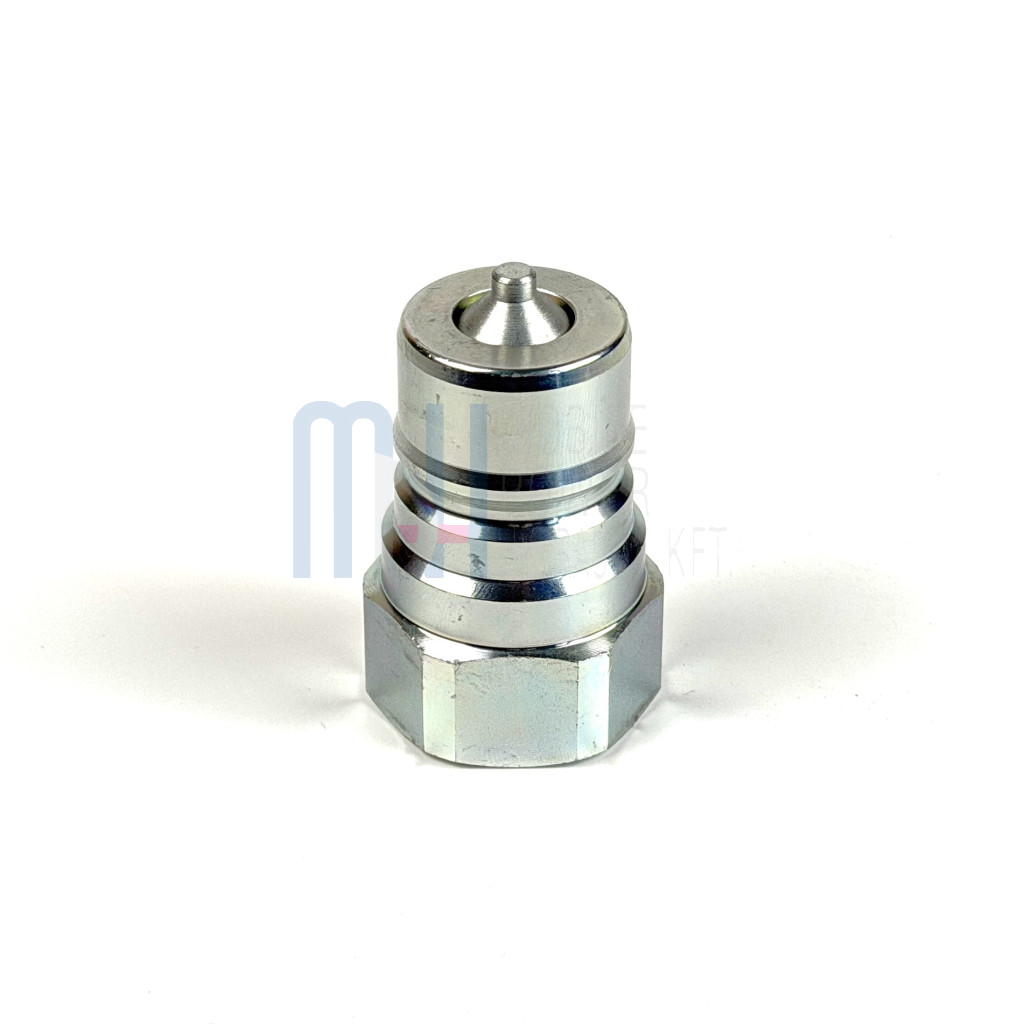

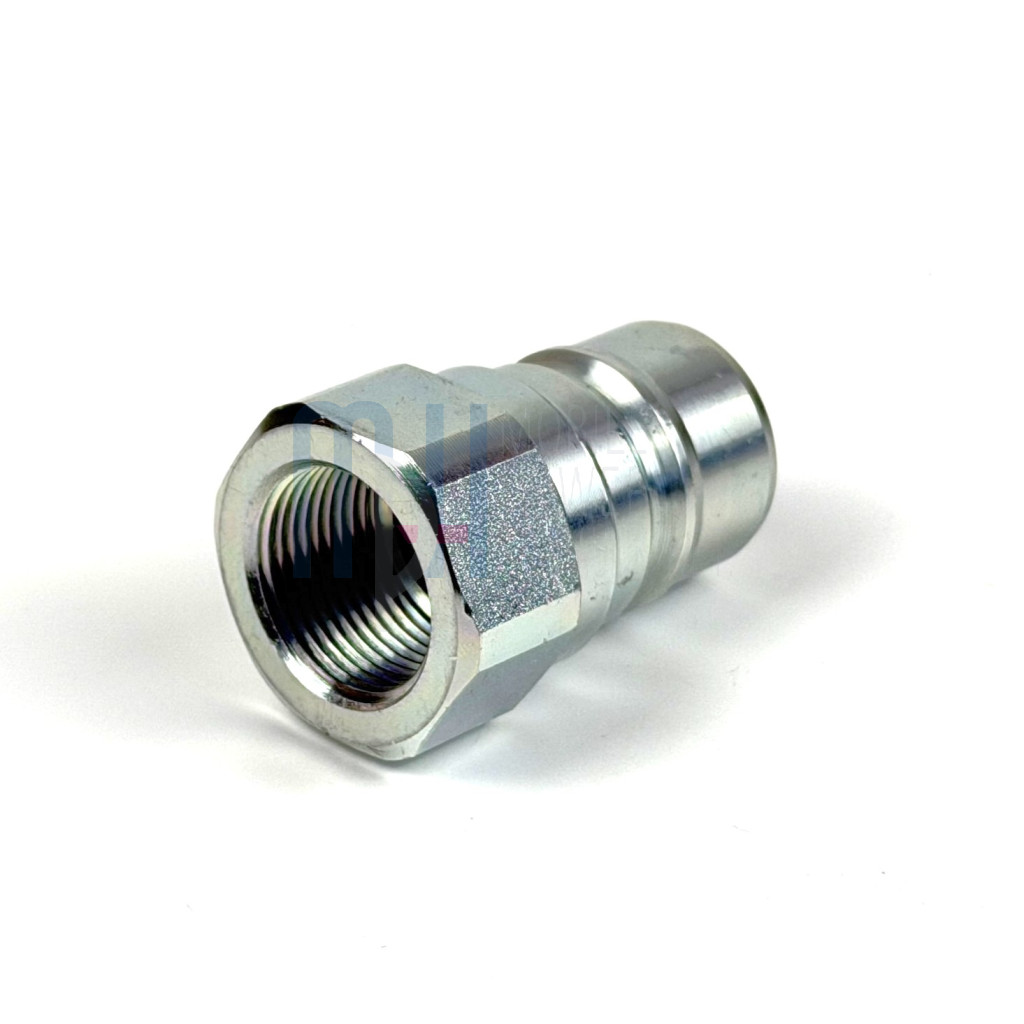

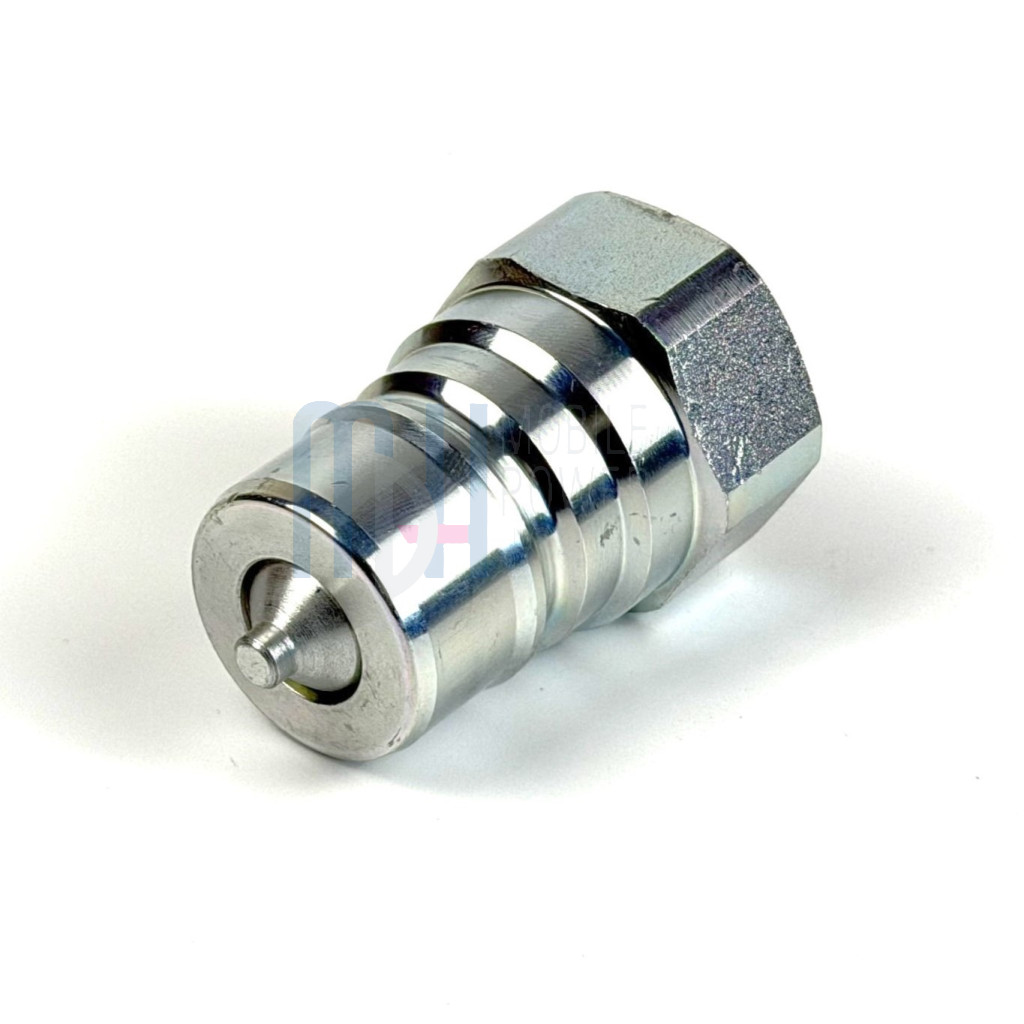

DICSA B800108 – ISO 7241-A quick release coupling, BSP, male
Product description:
This quick release coupling is manufactured according to the ISO 7241-A standard with a BSP male thread connection. The body is made of steel and fitted with an NBR seal, ensuring reliable sealing performance in hydraulic systems. Thanks to its robust design, it is suitable for both industrial and mobile hydraulic applications.
The BG size indicates the mating part size. Therefore, when selecting a quick coupling pair, it is important that both the "male and female" have the same BG size, otherwise they cannot be connected.
Main technical data:
- Connection: 1/2” BSP
- ISO size: 12.5 (ISO size 3)
- BG size: 3
- Nominal operating pressure: 275 bar
- Nominal flow rate: 45 l/min
- Seal: NBR
- Material: steel
- Operating temperature: -20 °C … +100 °C
