Glycerine filled pressure gauge DN 63, 1/4" BSP, bottom connection, 0–250 bar
Product description:

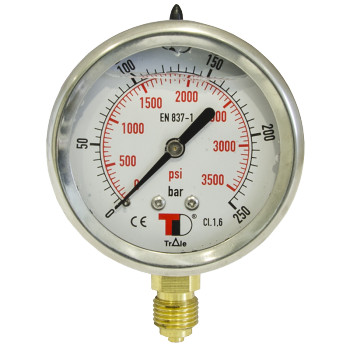

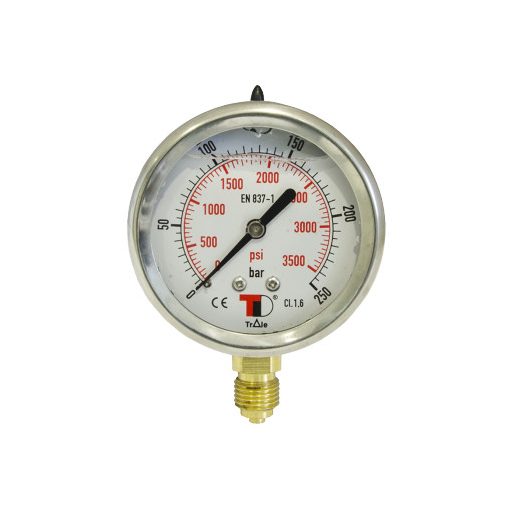

This is a DN 63 diameter, bottom (vertical) connection, glycerine-filled pressure gauge with 1/4" BSP threaded connection. The glycerine filling dampens vibrations and pressure spikes, providing more stable and accurate readability in hydraulic systems and industrial applications. The instrument features a dual bar/psi scale and IP65 protection rating, ensuring reliable operation even in dusty or wet environments.
Technical data:
- Connection: 1/4" BSP
- Design: bottom connection, glycerine filled
- Measuring range: 0–250 bar
- Accuracy class: 1.6%
- Case material: stainless steel 304
- Bezel material: stainless steel 304
- Window: polycarbonate
- Connection/thread material: brass
- Protection rating: IP65
- Operating temperature: -20 °C – +60 °C
