Operating Principle

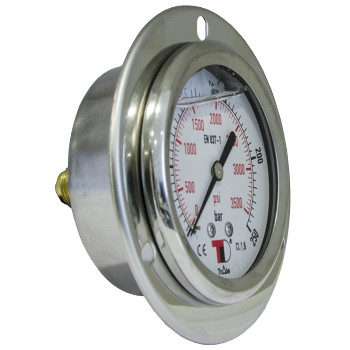

This pressure gauge operates using a Bourdon tube mechanism: as internal pressure increases, the curved tube flexes. This motion is mechanically transmitted to the pointer, which moves across the dial to indicate the pressure value.
The system is entirely mechanical, requiring no external power source, ensuring reliability and energy independence. Its rugged design handles shock and vibration typical in industrial settings.
