HYDRAULIC PRESSURE GAUGE DN100 0-600 BAR REAR CONNECTION

Name: HYDRAULIC PRESSURE GAUGE DN100 0-600 BAR REAR CONNECTION
Brand: DICSA
SKU: HK_MFI10008600-DB
Price: 36 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Connection: 1/2" BSP

Connection point: Rear

Measuring range: 0-600 bar

Operating temperature: -10°C / +60°C

Manufacturer: DICSA

Datasheet: Click here to download

Available to order

29 €+VAT

Item number:

HK_MFI10008600-DB

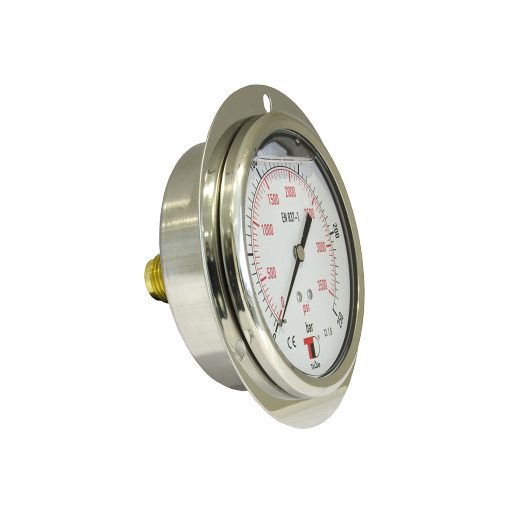

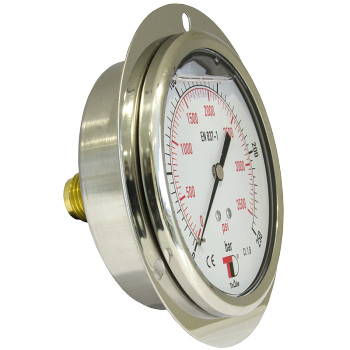

Glycerine filled pressure gauge DN 100, 1/2" BSP, rear connection, 0–600 bar

Product description:

This is a DN 100 diameter, rear connection, glycerine-filled pressure gauge with 1/2" BSP threaded connection. The glycerine filling dampens vibrations and pressure spikes, providing more stable and accurate readability in hydraulic systems and industrial applications. The instrument features a dual bar/psi scale and IP65 protection rating, ensuring reliable operation even in dusty or wet environments.

Technical data:

Connection: 1/2" BSP
Design: rear connection, glycerine filled
Measuring range: 0–600 bar
Accuracy class: 1.6%
Case material: stainless steel 304
Bezel material: stainless steel 304
Window: polycarbonate
Connection/thread material: brass
Protection rating: IP65
Operating temperature: -10 °C – +60 °C

Data

Weight:

240 g/pc(s)

Details

Operating Principle

The gauge works on the Bourdon tube principle: under pressure, the tube flexes and this movement is transferred through a gear mechanism to rotate the needle. The needle then displays the exact system pressure on the dial.

Since the unit is fully mechanical, it operates without any electrical power supply, ensuring reliability even in harsh environments. Its durable construction is resistant to vibration and shock, making it ideal for continuous industrial use.
