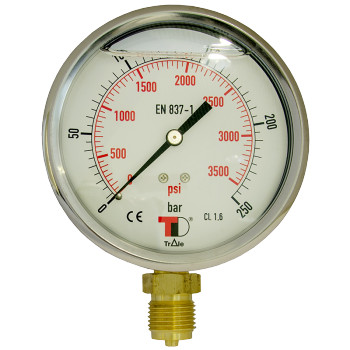

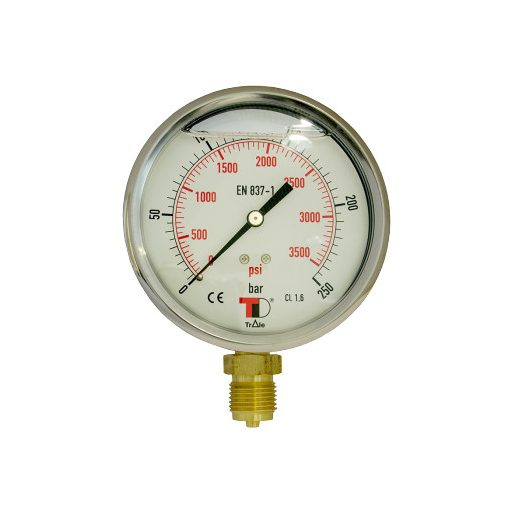

HYDRAULIC PRESSURE GAUGE DN100 0-250 BAR VERTICAL CONNECTION

Name: HYDRAULIC PRESSURE GAUGE DN100 0-250 BAR VERTICAL CONNECTION
Brand: DICSA
SKU: HK_MFI10008250V
Price: 56 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Connection: 1/2" BSP

Connection point: Vertical

Measuring range: 0-250 bar

Operating temperature: -20°C / +60°C

Manufacturer: DICSA

Datasheet: Click here to download

Available to order

44 €+VAT

Item number:

HK_MFI10008250V

Glycerine filled pressure gauge DN 100, 1/2" BSP, bottom connection, 0–250 bar

Product description:

This is a DN 100 diameter, bottom (vertical) connection, glycerine-filled pressure gauge with 1/2" BSP threaded connection. The glycerine filling dampens vibrations and pressure spikes, providing more stable and accurate readability in hydraulic systems and industrial applications. The instrument features a dual bar/psi scale and IP65 protection rating, ensuring reliable operation even in dusty or wet environments.

Technical data:

Connection: 1/2" BSP
Design: bottom connection, glycerine filled
Measuring range: 0–250 bar
Accuracy class: 1.6%
Case material: stainless steel 304
Bezel material: stainless steel 304
Window: polycarbonate
Connection/thread material: brass
Protection rating: IP65
Operating temperature: -20 °C – +60 °C

Data

Weight:

500 g/pc(s)

Details

Operating Principle

The gauge uses a Bourdon tube mechanism: the tube flexes when pressurized, and this movement is transmitted through a mechanical linkage to rotate the dial pointer. The analog display works without any power supply, making it ideal for mobile or remote systems. In high-pressure applications, the reinforced tube design ensures reliable operation and safety. This provides effective monitoring in heavy-duty environments.
