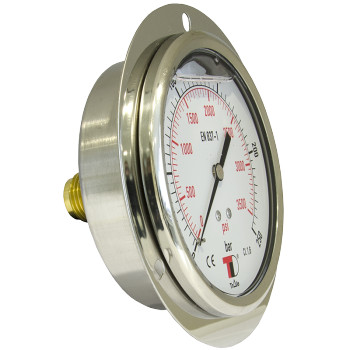

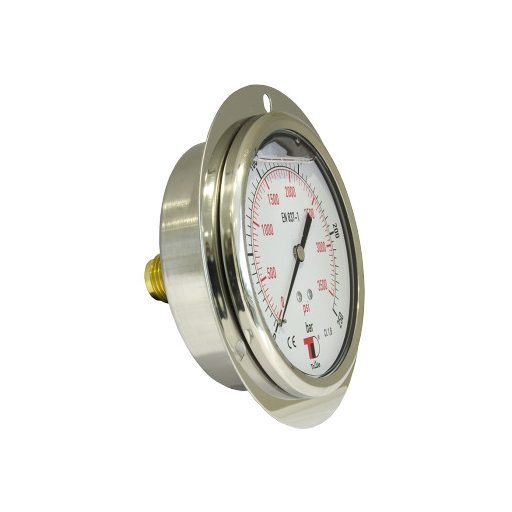

Glycerine filled pressure gauge DN 100, 1/2" BSP, rear connection, 0–100 bar
Product description:
This is a DN 100 diameter, rear connection, glycerine-filled pressure gauge with 1/2" BSP threaded connection. The glycerine filling dampens vibrations and pressure spikes, providing more stable and accurate readability in hydraulic systems and industrial applications. The instrument features a dual bar/psi scale and IP65 protection rating, ensuring reliable operation even in dusty or wet environments.
Technical data:
- Connection: 1/2" BSP
- Design: rear connection, glycerine filled
- Measuring range: 0–100 bar
- Accuracy class: 1.6%
- Case material: stainless steel 304
- Bezel material: stainless steel 304
- Window: polycarbonate
- Connection/thread material: brass
- Protection rating: IP65
- Operating temperature: -10 °C – +60 °C
