BZ-125C PNEUMATIC JOYSTICK

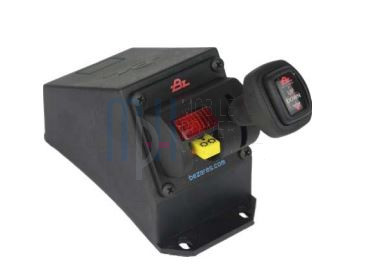

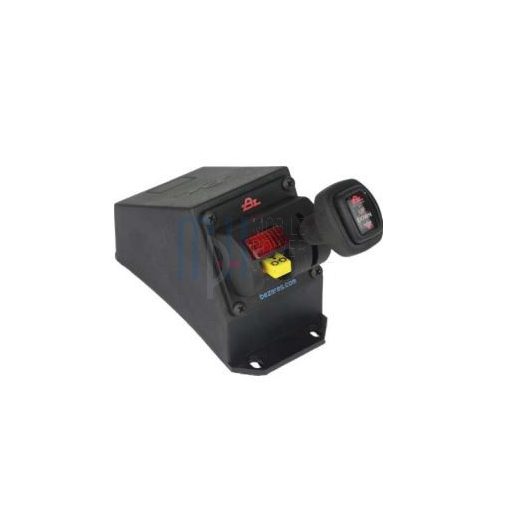

Bezares 908613 – BZ-125C 2-way pneumatic control (with indicator light)
Product description:
The Bezares 908613 part number 2-way pneumatic switch, with a built-in operation indicator light, can be used for PTO engagement and for controlling the tipping valve of a tipper body. When combined with a suitable tipping valve, proportional lowering can be achieved.
Main data:
- Operating medium: air
- Nominal pressure: 6–8 bar
- Max. pressure: 10 bar
- Operating temperature: -20 °C … +80 °C
- Version: without pneumatic tube and fittings
How it works?
The joystick operates using compressed air: moving the lever actuates internal pneumatic valves, directing air flow toward a specific circuit. This airflow controls hydraulic cylinders or valves enabling actions like lifting, lowering, or pausing the platform.
The system's quick response and precise positioning allow the operator to control the vehicle’s hydraulic functions safely and efficiently. A key advantage of pneumatic systems is their reliability even in environments where electric components might fail.
