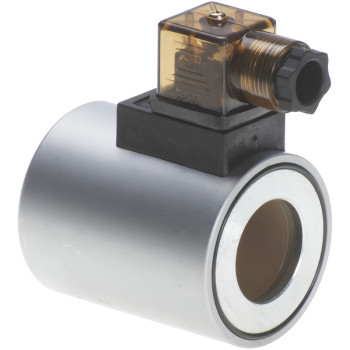

NG10 solenoid coil MR-10-110AC H
Product description:
The MR-10-110AC H is an NG10 size replacement solenoid coil designed for 110V AC / 50 Hz voltage, compatible with NG10 standard hydraulic directional control valves. The 100% duty cycle (ED 100%) enables continuous operation without the risk of coil overheating – a particularly important factor in industrial applications. Power consumption is max. 37 W, and insulation class F ensures long service life and heat resistance. The IP65 protection class provides adequate protection against dust and water jets. Maximum operating pressure is 210 bar.
Key features:
- Part number: MR-10-110AC H
- Size: NG10
- Supply voltage: 110V AC
- Frequency: 50 Hz
- Power consumption: ≤37 W
- Duty cycle: ED 100% (continuous)
- Insulation class: F
- Core diameter (Ø): 31,6 mm
- Max. operating pressure: 210 bar
- Protection class: IP65
