SUCTION FILTER 3" BSP

Name: SUCTION FILTER 3" BSP
Brand: DICSA
SKU: HK_FITS43T149
Price: 96 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Connection: 3" BSP

Max. flow rate: 400 l/min

Overall dimension: 150*272(A*B)

Filtration fineness: 149 µm

Material: Metal

Manufacturer: DICSA

Datasheet: Click here to download

Max. temperature: 80ºC

Manufacturer part number: FITS43T149

Available to order

76 €+VAT

Item number:

HK_FITS43T149

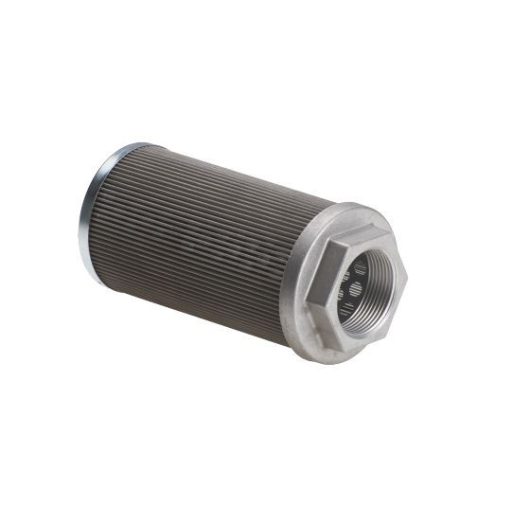

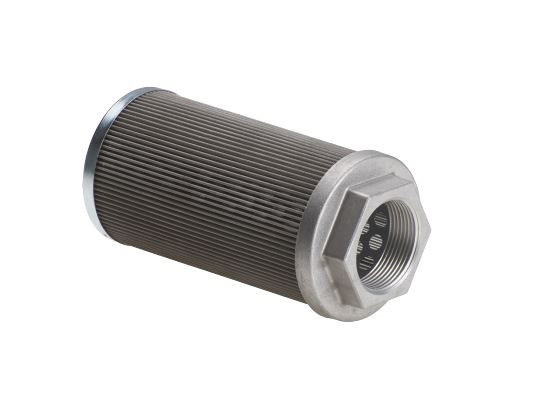

Metal Suction Filter 149 µm, 3" BSP - FITS43T149

Product description:

This is a 149 µm filtration rating, metal hydraulic suction filter with 3" BSP connection. The filter has a maximum flow rate of 400 l/min and a maximum allowable operating temperature of 80ºC. It features a steel cap and support tube with an aluminium die-cast nut.

Technical specifications:

Connection: 3" BSP
Type: metal suction filter
Filter rating: 149 µm
Maximum flow rate: 400 l/min
Maximum temperature: 80ºC
"A" Diameter: 150 mm
"B" Length: 272 mm
Cap and support tube material: steel
Nut material: aluminium die-cast

Data

Weight:

200 g/pc(s)

Details

Operating Principle

The suction filter is installed in the hydraulic system's suction line, directly before the pump. As the oil flows through the filter element, larger contaminants are removed before the oil enters the system. This protects the pump and sensitive components from wear or failure. The filtration is continuous, helping ensure safe and long-term reliable operation.
