SUCTION FILTER 1''1/2 BSP

Name: SUCTION FILTER 1''1/2 BSP
Brand: DICSA
SKU: HK_FITS33T149
Price: 31 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Connection: 1"1/2 BSP

Max. flow rate: 120 l/min

Overall dimension: 86*200(A*B)

Filtration fineness: 149 µm

Material: Metal

Manufacturer: DICSA

Datasheet: Click here to download

Max. temperature: 80ºC

Manufacturer part number: FITS33T149

Available to order

25 €+VAT

Item number:

HK_FITS33T149

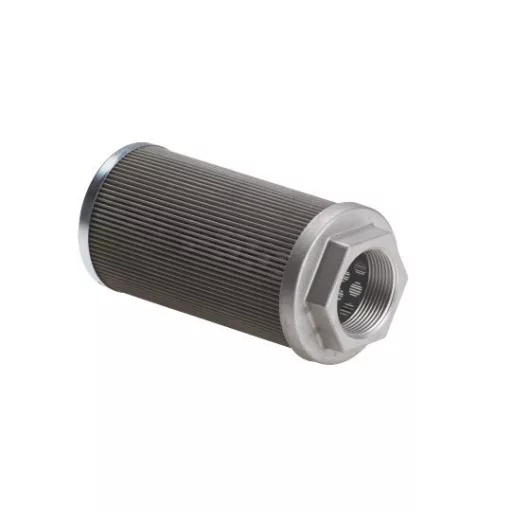

Metal Suction Filter 149 µm, 1"1/2 BSP - FITS33T149

Product description:

This is a 149 µm filtration rating, metal hydraulic suction filter with 1"1/2 BSP connection. The filter has a maximum flow rate of 120 l/min and a maximum allowable operating temperature of 80ºC. It features a steel cap and support tube with an aluminium die-cast nut.

Technical specifications:

Connection: 1"1/2 BSP
Type: metal suction filter
Filter rating: 149 µm
Maximum flow rate: 120 l/min
Maximum temperature: 80ºC
"A" Diameter: 86 mm
"B" Length: 200 mm
Cap and support tube material: steel
Nut material: aluminium die-cast

Data

Weight:

200 g/pc(s)

Details

Operating Principle

The suction filter is installed in the oil intake line of the hydraulic system, just before the pump. As oil flows through it, the fine mesh filter element captures contaminants coming from the reservoir. This prevents coarse particles from damaging the pump or other sensitive system components. The filter provides continuous protection and reduces the risk of failure.
