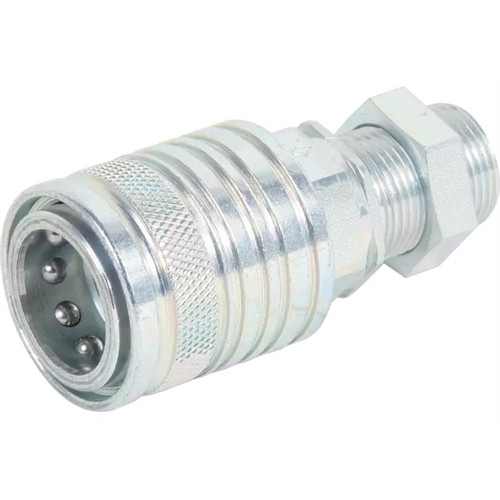

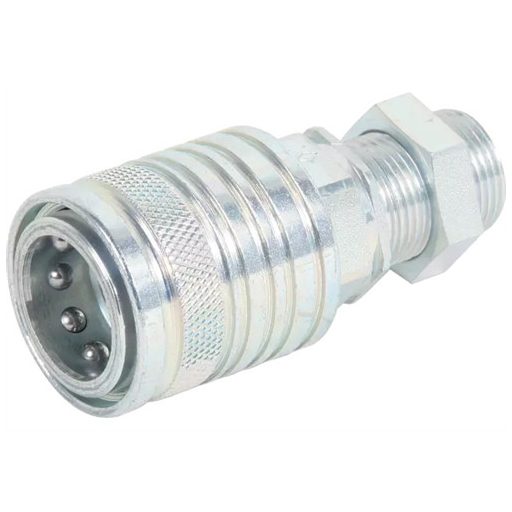

QUICK RELASE COUPLING ISO-A 12L SV 18X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 12L SV 18X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813152
Price: 29 EUR
Availability: InStock

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M18X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

In stock

23 €+VAT

Item number:

T_00813152

STAUFF 00 813 152 – Hydraulic quick release coupling, male bulkhead thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It features a bulkhead mounting thread for easy panel installation. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M18 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

This coupling incorporates a locking collar and internal poppet valve within a rotating swivel body. Inserting the matching male plug retracts the collar and opens the valve, allowing fluid to pass through. When disconnected, the valve closes automatically to prevent leakage and keep the system clean. The swivel joint allows the hose to rotate freely without stressing the connection. This tool-free design enables fast, safe, and low-maintenance operation even under pressure.
