QUICK RELASE COUPLING ISO-A 10L SV 16X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 10L SV 16X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813151
Price: 29 EUR
Availability: InStock

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M16X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

In stock

23 €+VAT

Item number:

T_00813151

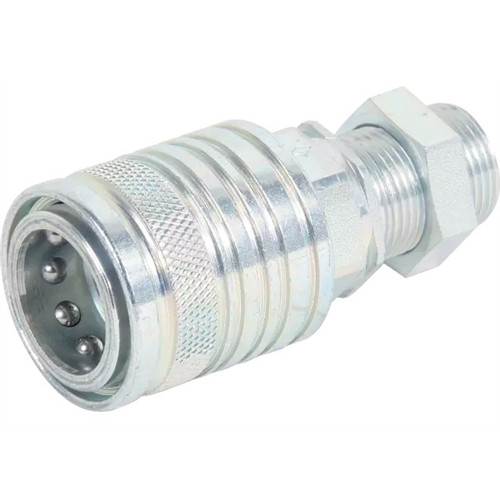

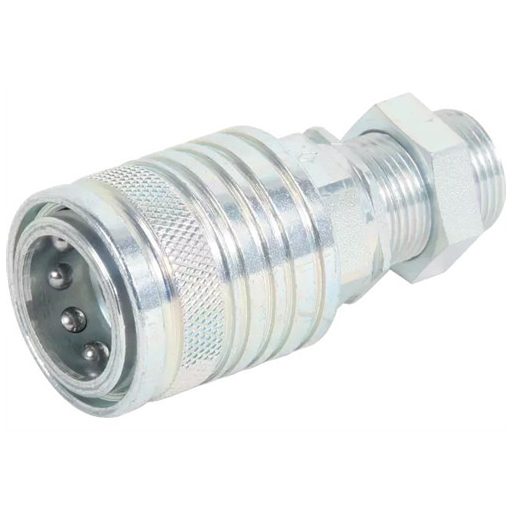

STAUFF 00 813 151 – Hydraulic quick release coupling, male bulkhead thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It features a bulkhead mounting thread for easy panel installation. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M16 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

The coupling includes a spring-loaded locking collar and internal poppet valve. When the matching male plug is inserted, the collar retracts and the valve opens to allow fluid flow. As soon as the plug is removed, the valve closes automatically to prevent leakage and contamination. The swivel joint allows the hose or adapter to rotate freely without stressing the connection. This design enables fast, safe, and low-maintenance coupling and uncoupling even under pressure.
