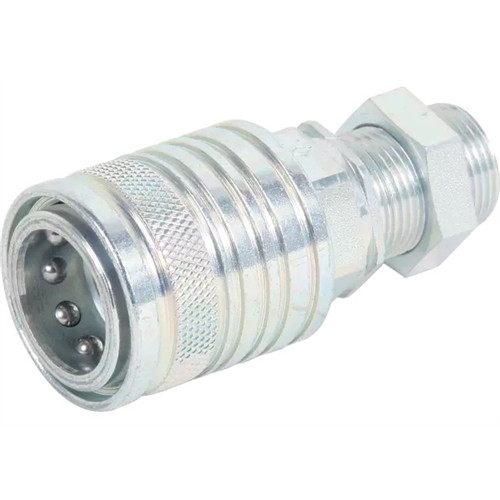

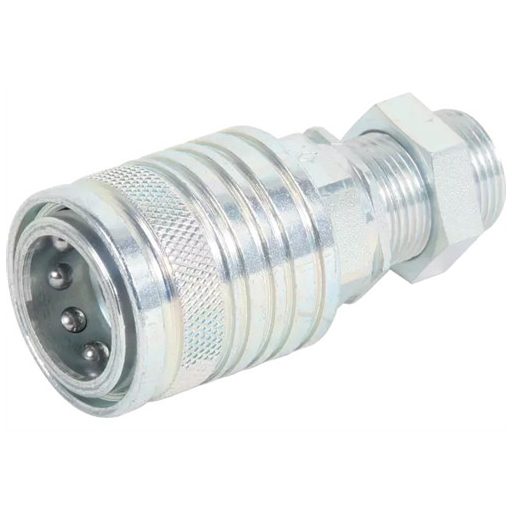

QUICK RELASE COUPLING ISO-A 8L SV 14X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 8L SV 14X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813150
Price: 25 EUR
Availability: InStock

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M14X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

In stock

19 €+VAT

Item number:

T_00813150

STAUFF 00 813 150 – Hydraulic quick release coupling, male bulkhead thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It features a bulkhead mounting thread for easy panel installation. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M14 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

This coupling features a spring-loaded locking collar and an internal poppet valve. Insert the matching male plug: the collar retracts and the valve opens, allowing fluid flow. On disconnection, the valve automatically closes, preventing oil leakage and sealing off the circuit. The flat-face seal ensures a clean, drip-free separation even under residual pressure. Designed for fast, safe, and low-maintenance connection and disconnection, this coupling enhances operational reliability.
