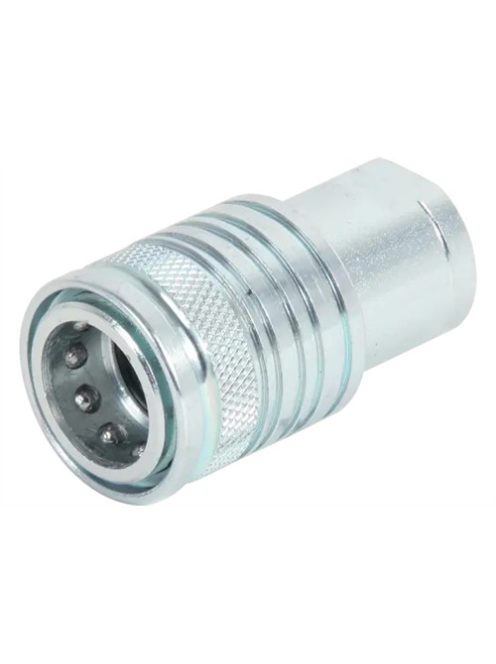

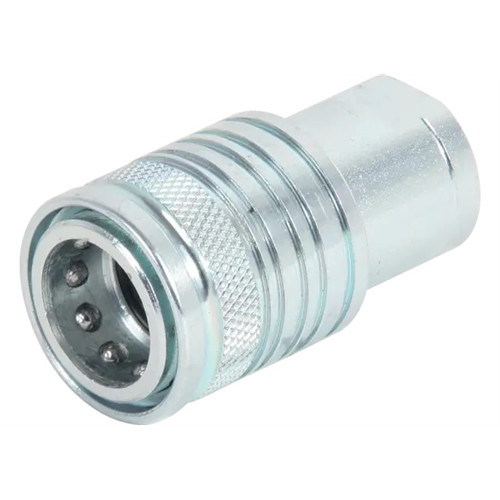

QUICK RELASE COUPLING ISO-A M22X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A M22X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813141
Price: 23 EUR
Availability: InStock

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M22X1, 5

Thread location: INNER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

In stock

18 €+VAT

Item number:

T_00813141

STAUFF 00 813 141 – Hydraulic quick release coupling, female thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a female threaded connection. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M22 × 1.5
Design: socket (female thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

300 g/pc(s)

Details

Operation Principle

This female coupling features an internal poppet valve and spring-loaded locking collar. When connected to the matching male plug, the collar retracts and opens the valve, allowing hydraulic fluid to pass. Once disconnected, the valve automatically closes, preventing fluid leakage and keeping the circuit clean. The flat-face seal ensures a clean, drip-free separation even under pressure. This tool-less connection offers fast, safe, and low-maintenance coupling for hydraulic systems.
