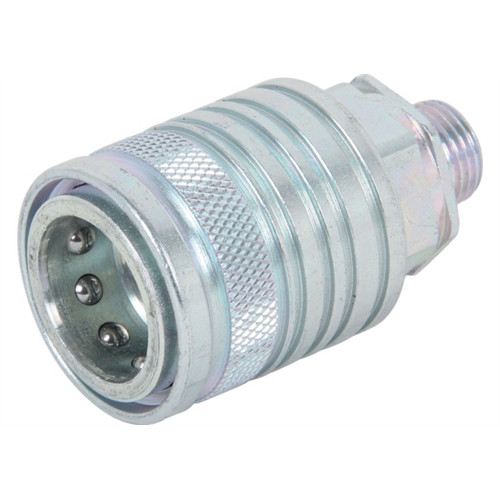

QUICK RELASE COUPLING ISO-A 15L 22X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 15L 22X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813126
Price: 15 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M22X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

Available to order

12 €+VAT

Item number:

T_00813126

STAUFF 00 813 126 – Hydraulic quick release coupling, male thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M22 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

Inside the coupling are a spring-loaded locking collar and internal valve mechanism. Inserting the matching male plug retracts the collar and opens the valve, permitting fluid flow. When unplugged, the valve closes automatically to prevent leakage and keep the circuit clean. The flat-face interface ensures a drip-free connection and disconnection, even under pressure. This design allows secure, quick, and maintenance-friendly operation without any tools.
