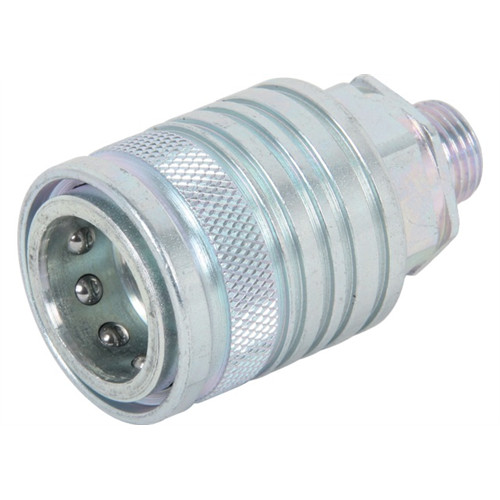

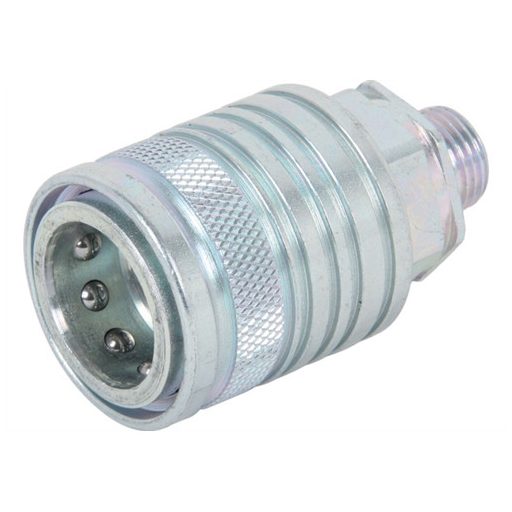

QUICK RELASE COUPLING ISO-A 12L 18X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 12L 18X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813125
Price: 22 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M16X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

Available to order

17 €+VAT

Item number:

T_00813125

STAUFF 00 813 125 – Hydraulic quick release coupling, male thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M18 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

This male coupling includes an internal poppet valve and retractable sleeve mechanism. When connected to the corresponding female socket, the sleeve retracts to open the valve and allow fluid to flow. Upon disconnection, the valve automatically closes to seal off flow and prevent leakage. The flat-face mating ensures a clean, drip-resistant disconnection even under residual pressure. The coupling enables fast, safe, and maintenance-friendly operation without tools.
