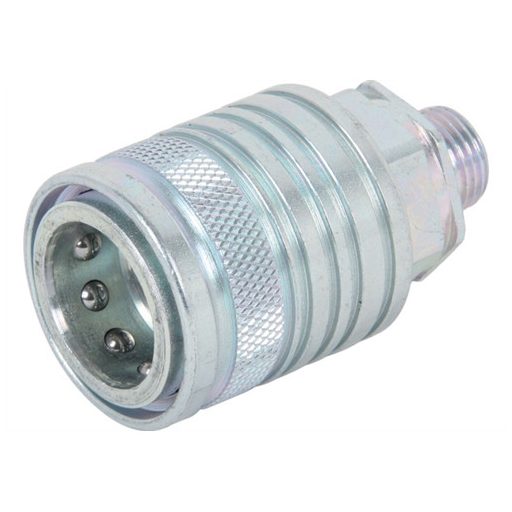

QUICK RELASE COUPLING ISO-A 10L 16X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 10L 16X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813124
Price: 15 EUR
Availability: InStock

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M16X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

In stock

12 €+VAT

Item number:

T_00813124

STAUFF 00 813 124 – Hydraulic quick release coupling, male thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M16 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

This coupling features an internal valve mechanism with a spring-loaded locking sleeve. Inserting the matching male plug retracts the sleeve and opens the valve, allowing hydraulic fluid to flow through. Upon disconnection, the valve automatically closes to prevent leakage and keep the system sealed and clean. The flat-face design ensures a drip-free, clean separation even under pressure. No tools are needed, making the coupling quick to connect or disconnect while maintaining system integrity and minimizing downtime.
