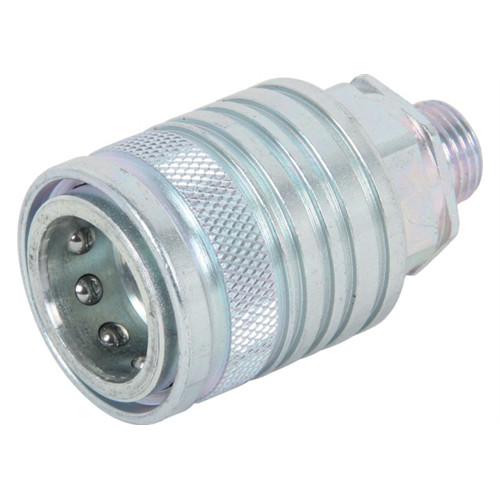

QUICK RELASE COUPLING ISO-A 8L 14X1,5 BG3 FEMALE

Name: QUICK RELASE COUPLING ISO-A 8L 14X1,5 BG3 FEMALE
Brand: STAUFF
SKU: T_00813123
Price: 14 EUR
Availability: InStock

Characteristics: Standard Couplings for Agriculture Applications

Design: Female

Standard Size: BG3

Pipe / Hose connection: Metric

Pipe / Hose connection size: M14X1, 5

Thread location: OUTER

Type: ISO 7241-1 A

Operating pressure: up to 250 bar

Max. flow rate: 80 l/m

Pressurized connection: No

Seal: NBR: +100°C / -30°C

Manufacturer: STAUFF

In stock

11 €+VAT

Item number:

T_00813123

STAUFF 00 813 123 – Hydraulic quick release coupling, male thread (Female)

Product description:

This STAUFF hydraulic quick release coupling is designed in socket (female) version with a male threaded connection. It is suitable for industrial and mobile hydraulic systems, providing a reliable and secure connection. The BG size indicates the mating part size, therefore when selecting a quick coupling pair, both the “male” and “female” sides must have the same BG size.

Main technical data:

BG size: 3
Connection: M14 × 1.5
Design: plug (male thread)
Max. operating pressure: 250 bar
Nominal flow rate (Qmax): 80 l/min

Data

Weight:

500 g/pc(s)

Details

Operation Principle

This socket features a spring-loaded locking collar and internal poppet valve. When the matching male plug is inserted, the collar retracts and opens the valve, allowing fluid to flow. On disconnection, the valve closes automatically to prevent leakage and contamination. The flat-face design ensures clean, drip-free separation. The coupling is designed for quick, safe, and maintenance-friendly operation even under pressure.
