PARKER F1 025-061 HYDRAULIC BY-PASS VALVE 24V DC

Name: PARKER F1 025-061 HYDRAULIC BY-PASS VALVE 24V DC
Brand: PARKER
SKU: P_3787201
Price: 813 EUR
Availability: InStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Manufacturer: PARKER

Manufacturer part number: 3787201

Available to order

640 €+VAT

Item number:

P_3787201

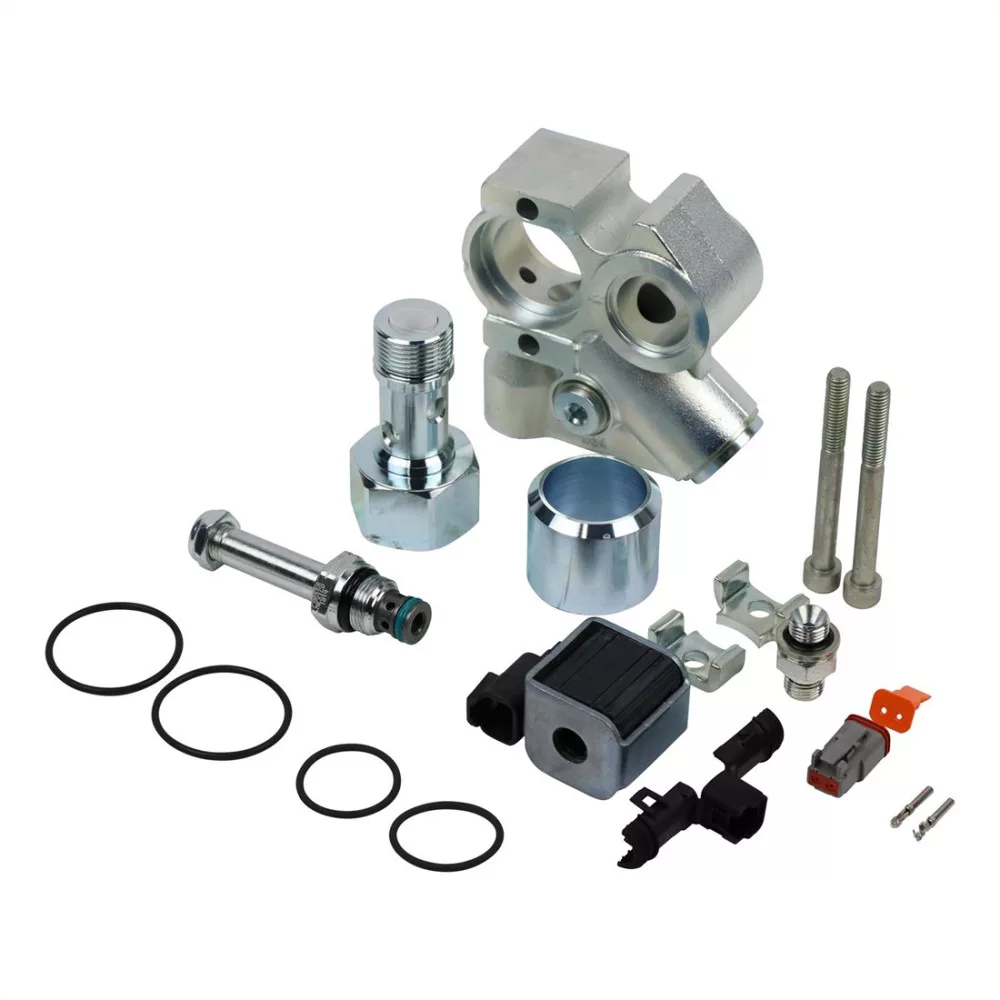

PARKER F1 025-061 HYDRAULIC BY-PASS VALVE 24V DC

This BY-PASS valve is designed for Parker F1 series hydraulic pumps.
Compatible with:

F1-025-R and L pumps
F1-041-R and L pumps
F1-051-R and L pumps
F1-061-R and L pumps

Easily mounted onto the rear of the pump. It is used in applications where the PTO cannot be engaged smoothly, allowing the by-pass valve to protect the system from overpressure during vehicle operation. In its default position, it prevents oil from entering the system. Operated via a 24V DC electrical connection and switching.

Data

Weight:

500 g/pc(s)

Details

Operating principle

By default, the valve remains open, allowing hydraulic fluid to return to the tank without building system pressure. When 24V DC is applied, the internal solenoid activates and closes the bypass route, forcing the fluid into the pressure line toward the working components.

Once power is removed, the valve reopens, unloading the pump again. This principle helps reduce wear, improve energy efficiency, and prevent overloads in hydraulic circuits.

PARKER F1 025-061 HYDRAULIC BY-PASS VALVE 24V DC

640 €+VAT
