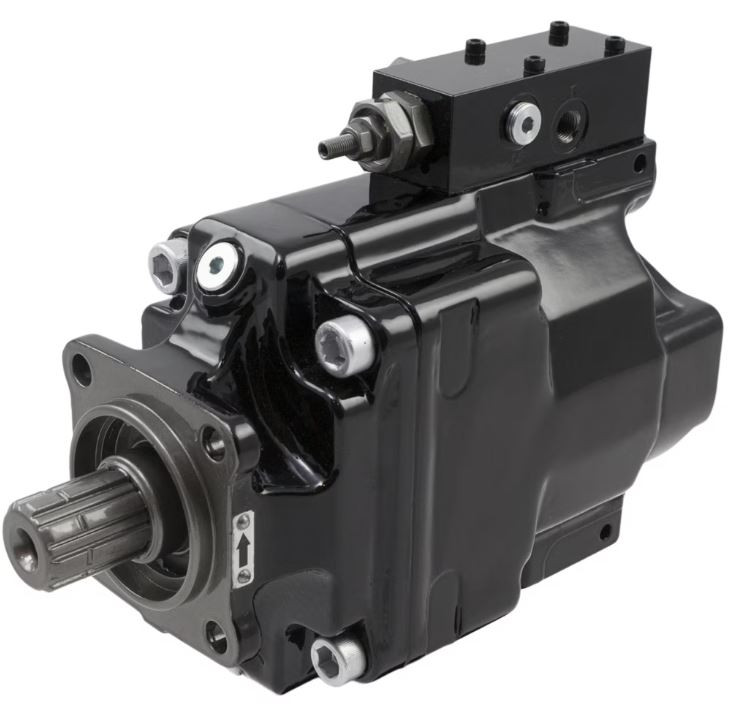

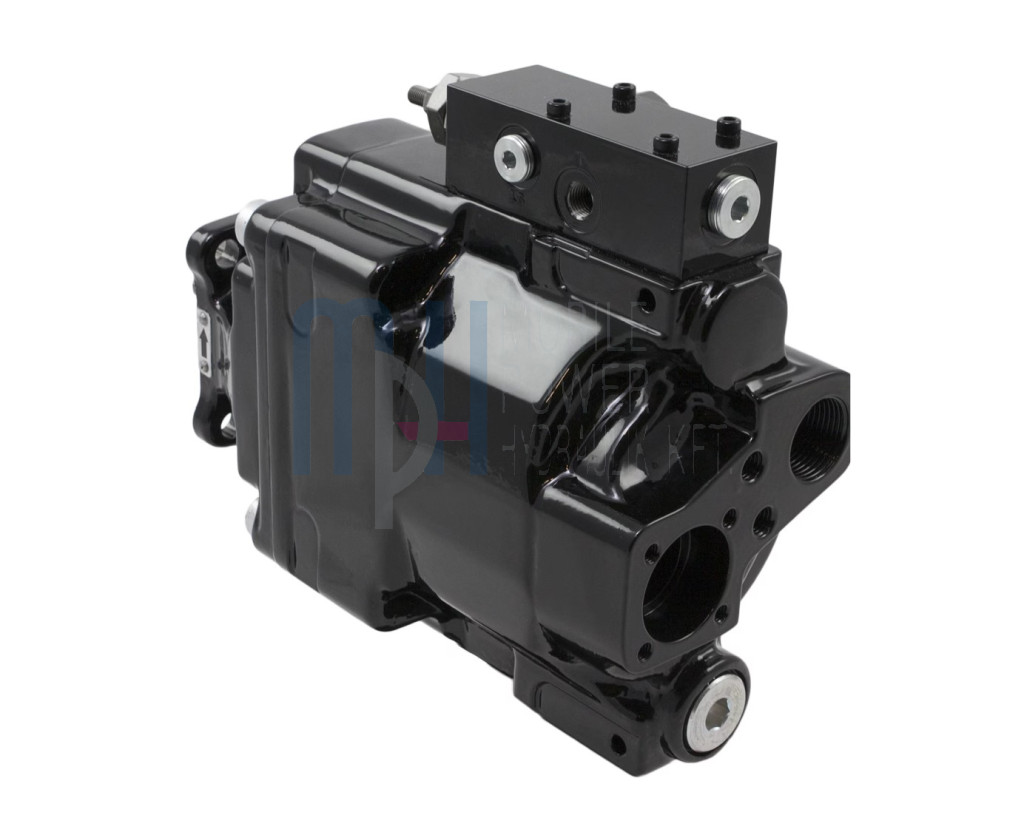

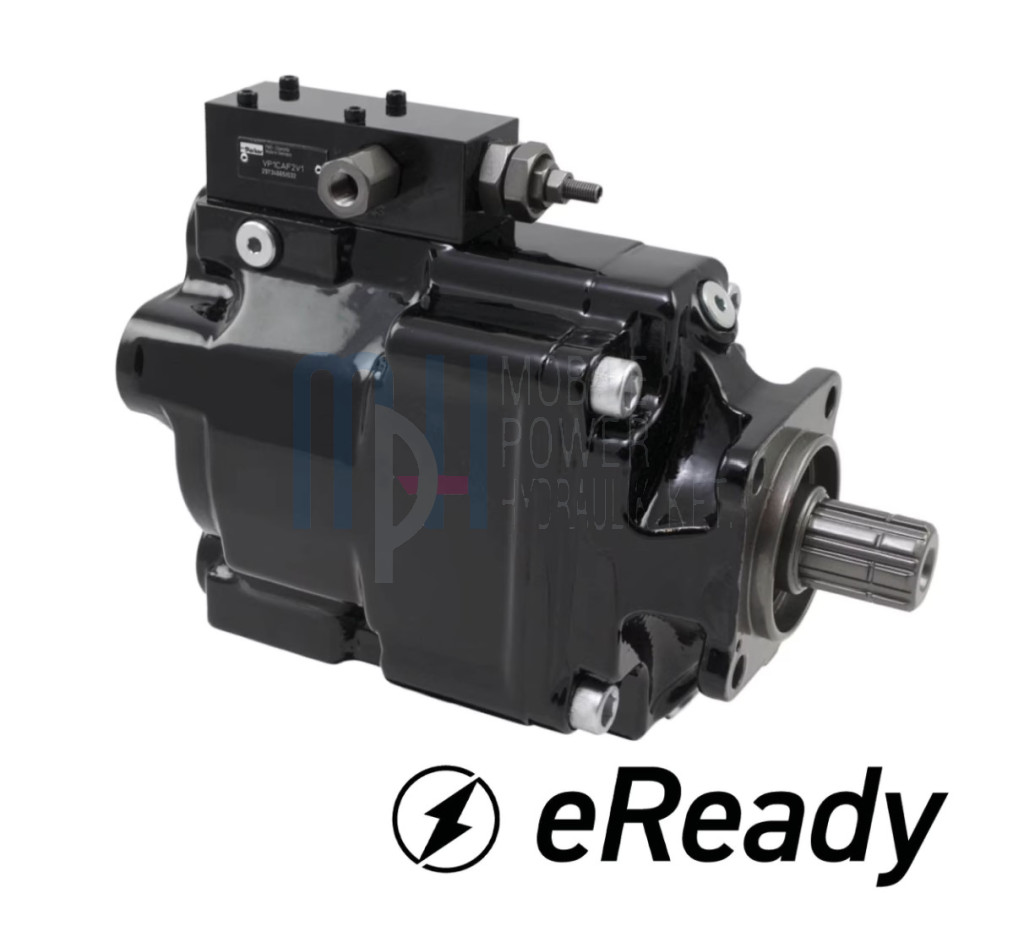

PARKER PISTON HYDRAULIC PUMP VP1-095-R
PARKER PISTON HYDRAULIC PUMP VP1-095-R PARKER PISTON HYDRAULIC PUMP VP1-095-R PARKER PISTON HYDRAULIC PUMP VP1-095-R
Details

Operating Principle

The VP1-095-R operates on the axial piston pump principle with a fixed displacement design. Inside the unit, pistons move back and forth along a swash plate while the drive shaft rotates, creating alternating suction and pressure phases. This mechanism draws hydraulic fluid into the pump and then delivers it under pressure to the hydraulic system. As a fixed displacement pump, it delivers a consistent fluid volume with every rotation of the shaft. This design ensures stable and efficient performance, even under high-pressure conditions.

PARKER PISTON HYDRAULIC PUMP VP1-095-R

Article No.:
P_3786000
Available for order
2 995+VAT

The Parker VP1-095-R is a high-performance, variable displacement axial piston pump designed specifically for open-circuit mobile hydraulic applications.

With a maximum operating pressure of up to 400 bar, it is ideal for demanding industrial and transport tasks. Known for its robust construction and precision engineering, the VP1 pump ensures reliable operation and a long service life.

The VP1-095-R features a displacement of 95 cm³/rev and can operate at speeds up to 2200 rpm, delivering high flow rates even under heavy load. This pump is a perfect choice for hydraulic systems in trucks, cranes, or other high-pressure mobile equipment.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 95
Max. pressure (bar): 400
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Variable displacement hydraulic pump
Direction of rotation: Right
Manufacturer: PARKER
Manufacturer part number: 3786000
PARKER PISTON HYDRAULIC PUMP VP1-095-R
PARKER PISTON HYDRAULIC PUMP VP1-095-R
2 995+VAT
