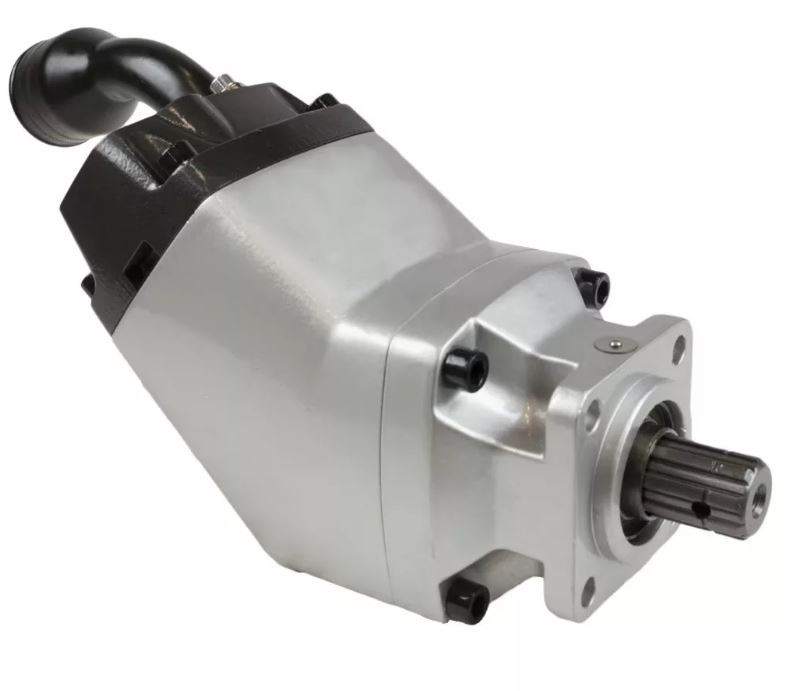

PARKER PISTON HYDRAULIC PUMP F 2-55/28-R

Details

Operating Principle

This pump operates on the axial piston principle with a bent-axis design. Pistons arranged in a rotating cylinder block move back and forth to draw in and push out hydraulic fluid. The angled shaft defines the piston stroke length, enabling continuous and efficient oil flow. The dual-circuit configuration allows the pump to supply two separate systems at the same time. Its design ensures high efficiency, smooth operation, and low pressure ripple. The construction supports reliable function even under high load conditions.

PARKER PISTON HYDRAULIC PUMP F 2-55/28-R

Article No.:

P_3784128

Available for order

The Parker F2-55/28-R is a fixed displacement twin-flow axial piston pump designed specifically for mobile hydraulic applications such as truck-mounted cranes and transport hydraulics. It features two separate pump sections 55 cm³/rev and 28 cm³/rev making it ideal for simultaneously operating two hydraulic circuits, for example, lifting and steering.

The pump supports operating pressures up to 400 bar and speeds up to 2,100 rpm, providing high performance even under demanding conditions. Its rugged, compact design ensures long service life and minimal maintenance, even in the harshest industrial environments. This model has a right-hand (R) rotation direction, so it’s important to verify compatibility before installation.

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 55/28

Max. pressure (bar): 350

Design: AXIAL PISTON HYDRAULIC PUMP

Variable / Fixed displacement: Constant volume displacement hydraulic pump

Direction of rotation: Right

Manufacturer: PARKER

Datasheet: Click here to download

Manufacturer part number: 3784128
