Operating Principle

The F2 pump operates on the bent-axis axial piston principle. Pistons are housed in a rotating cylinder block and move in a reciprocating motion due to the angled shaft. This movement enables the pump to draw hydraulic fluid in one direction and pressurize it in the other. The dual pump elements are mechanically driven by a common shaft but function independently in two separate hydraulic circuits. This design allows simultaneous powering of two different hydraulic functions with just one pump unit.

PARKER PISTON HYDRAULIC PUMP F2-42/42-L

Article No.:
P_3784043
Available for order
1 570+VAT

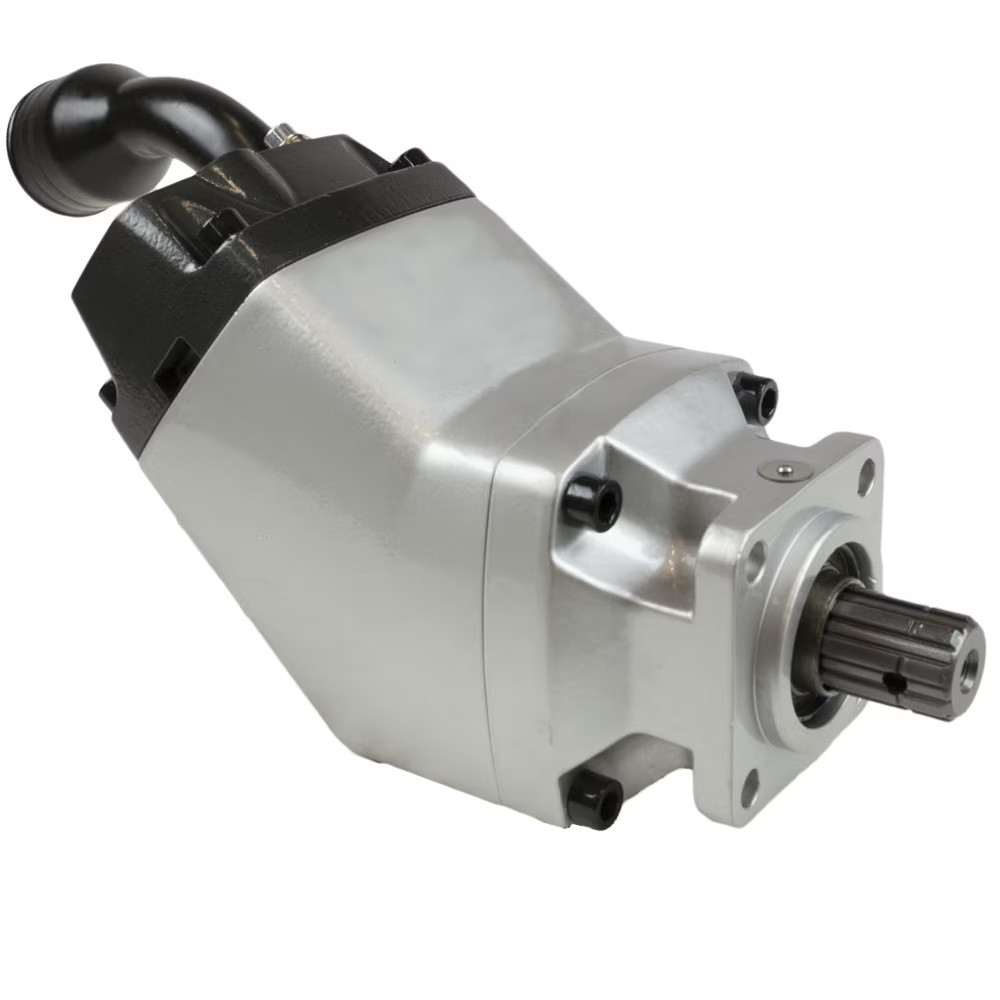

The Parker F2-42/42-L is a compact, high-performance fixed displacement axial piston pump specifically designed for mobile hydraulic systems, such as truck-mounted cranes. It features two identical hydraulic ports with 42 cm³/rev displacement, enabling efficient and simultaneous operation of parallel circuits.

The pump is rated for up to 400 bar operating pressure and speeds of up to 2500 rpm, making it suitable for demanding, high-duty applications. Its rugged industrial design ensures reliable operation and long service life, even under continuous load. This model has left-hand rotation (L), so make sure to verify the required drive direction before ordering.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 43/41
Max. pressure (bar): 350
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Constant volume displacement hydraulic pump
Direction of rotation: Left
Manufacturer: PARKER
Manufacturer part number: 3784043
