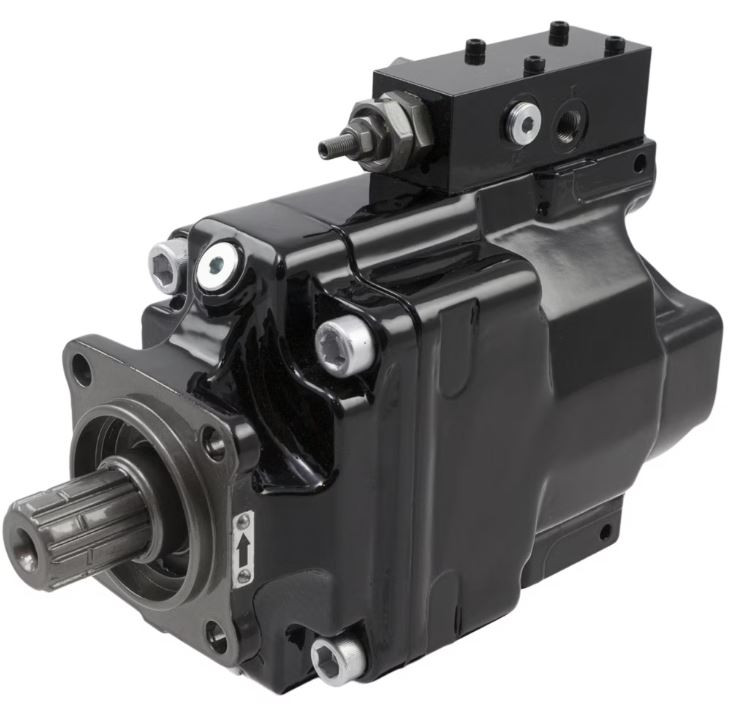

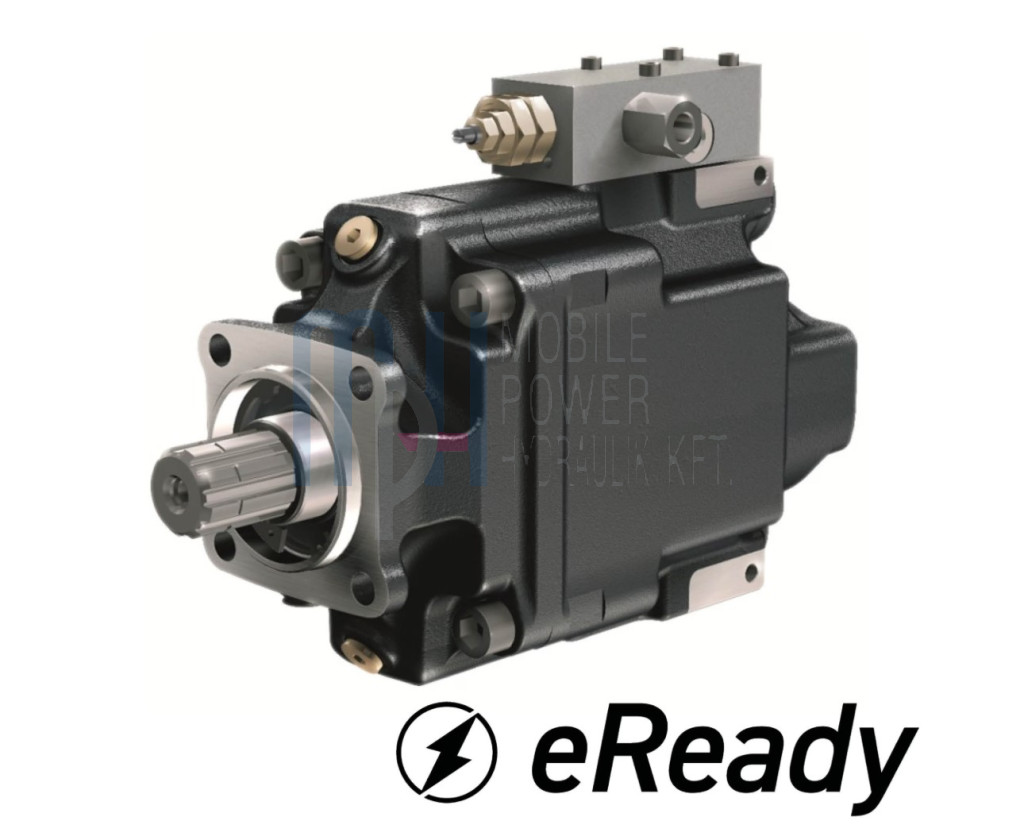

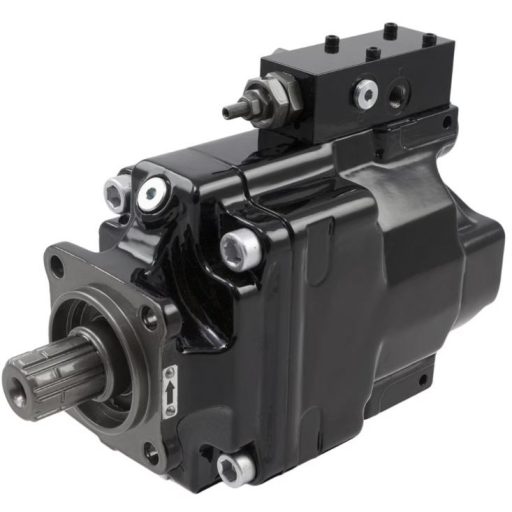

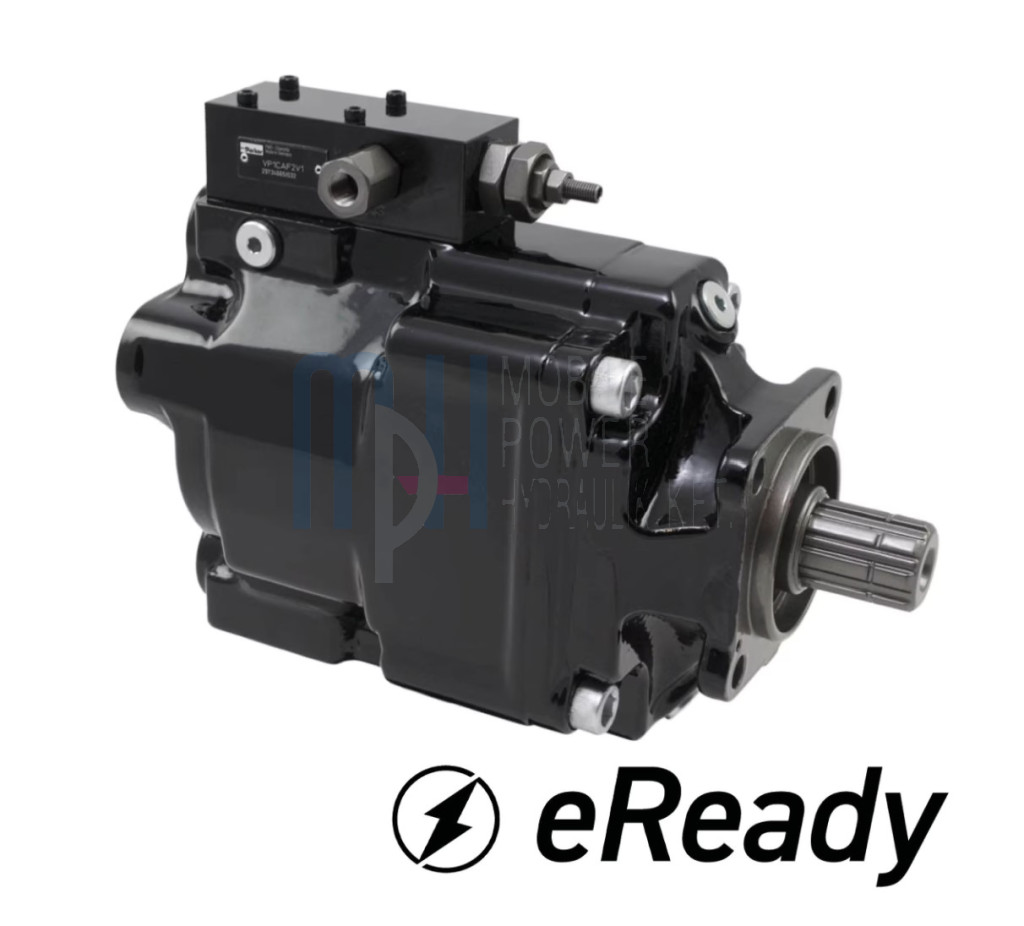

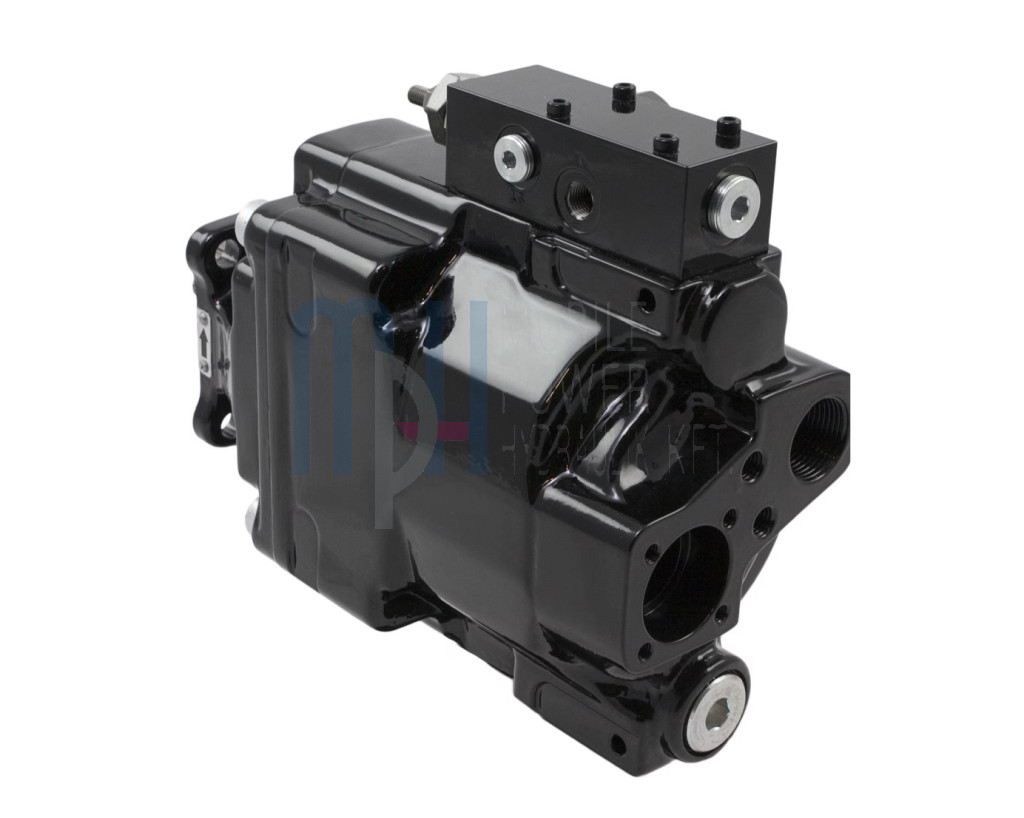

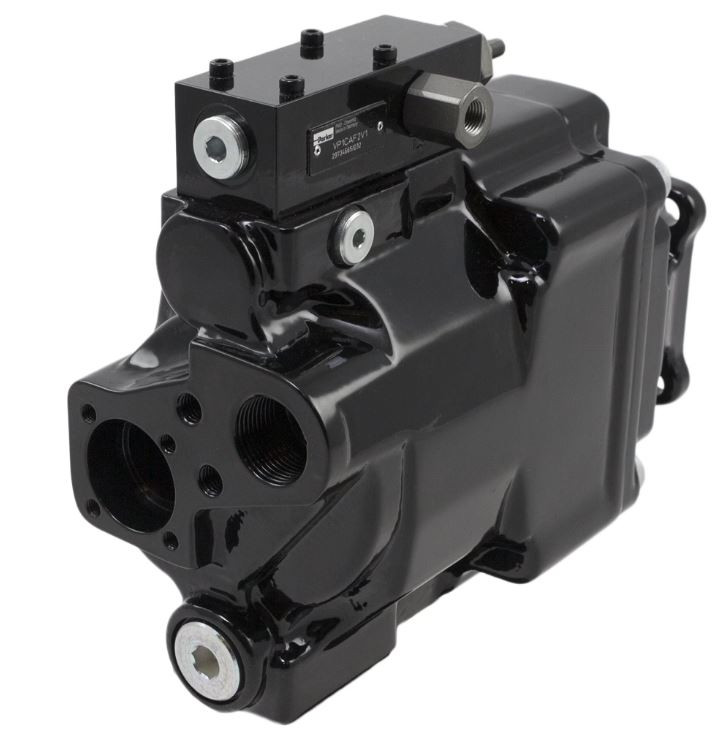

PARKER PISTON HYDRAULIC PUMP VP1-075-R
PARKER PISTON HYDRAULIC PUMP VP1-075-R PARKER PISTON HYDRAULIC PUMP VP1-075-R PARKER PISTON HYDRAULIC PUMP VP1-075-R
Details

Operating principle


This pump operates using a bent-axis design with a fixed displacement. The pistons are arranged in a cylinder block positioned at an angle to the drive shaft. As the shaft rotates, the pistons move axially to draw in and pressurize the hydraulic fluid. Each rotation delivers a fixed volume of oil, ensuring stable performance. This design provides efficient and dependable operation in high-pressure systems.

PARKER PISTON HYDRAULIC PUMP VP1-075-R

Article No.:
P_3780336
Available for order
2 783+VAT

The Parker VP1-075-R is a fixed displacement axial piston pump designed for mobile hydraulic applications, especially in heavy-duty trucks and transport systems. With a displacement of 75 cm³/rev and a maximum continuous operating pressure of 350 bar (up to 400 bar intermittently), it delivers high performance and reliability even under demanding conditions.

Its robust construction ensures a long service life with minimal maintenance, making it an excellent choice for industrial and logistics companies. The pump's compact design allows easy integration into tight spaces without compromising efficiency. Ideal for applications where consistent pressure and durability are critical.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 75
Max. pressure (bar): 350
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Variable displacement hydraulic pump
Direction of rotation: Right
Manufacturer: PARKER
Manufacturer part number: 780336
PARKER PISTON HYDRAULIC PUMP VP1-075-R
PARKER PISTON HYDRAULIC PUMP VP1-075-R
2 783+VAT
