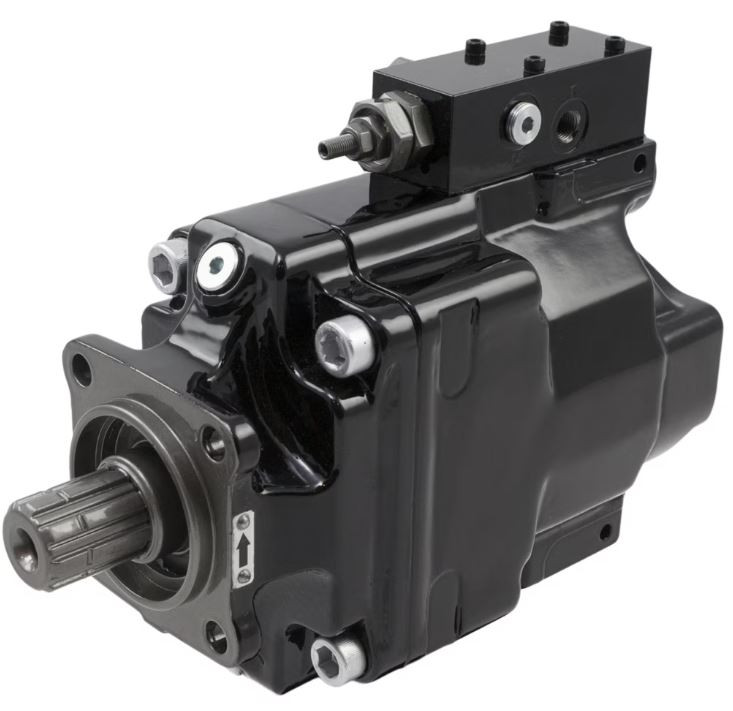

PARKER PISTON HYDRAULIC PUMP VP1-060-L
PARKER PISTON HYDRAULIC PUMP VP1-060-L PARKER PISTON HYDRAULIC PUMP VP1-060-L PARKER PISTON HYDRAULIC PUMP VP1-060-L
Details

Operating Principle

Axial piston pumps like the VP1-060-L operate based on the bent-axis design principle. Pistons move axially through a swashplate mechanism, which converts linear motion into rotary motion. With a fixed displacement, the VP1-060-L delivers a constant flow of hydraulic fluid. It is capable of withstanding high operating pressures while maintaining stable performance. The construction is suited for long-term, heavy-duty use in both industrial and mobile systems.

PARKER PISTON HYDRAULIC PUMP VP1-060-L

Article No.:
P_3722284
Available for order
2 783+VAT

The Parker VP1-060-L is a high-performance open-circuit axial piston pump designed for heavy-duty industrial and mobile applications such as trucks and construction equipment. With a displacement of 60 cm³/rev, it provides reliable output at continuous pressures up to 350 bar and peak loads up to 400 bar.

It features LS (Load Sensing) control, which automatically adjusts pump flow to match system demand improving energy efficiency and extending component life. The pump’s robust construction and ability to operate at speeds up to 3000 rpm make it ideal for demanding, continuous-duty environments.

This model has left-hand rotation (L), so it is important to confirm the correct drive orientation before ordering.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 60
Max. pressure (bar): 350
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Variable displacement hydraulic pump
Direction of rotation: Left
Manufacturer: PARKER
Manufacturer part number: 3722284
PARKER PISTON HYDRAULIC PUMP VP1-060-L
PARKER PISTON HYDRAULIC PUMP VP1-060-L
2 783+VAT
