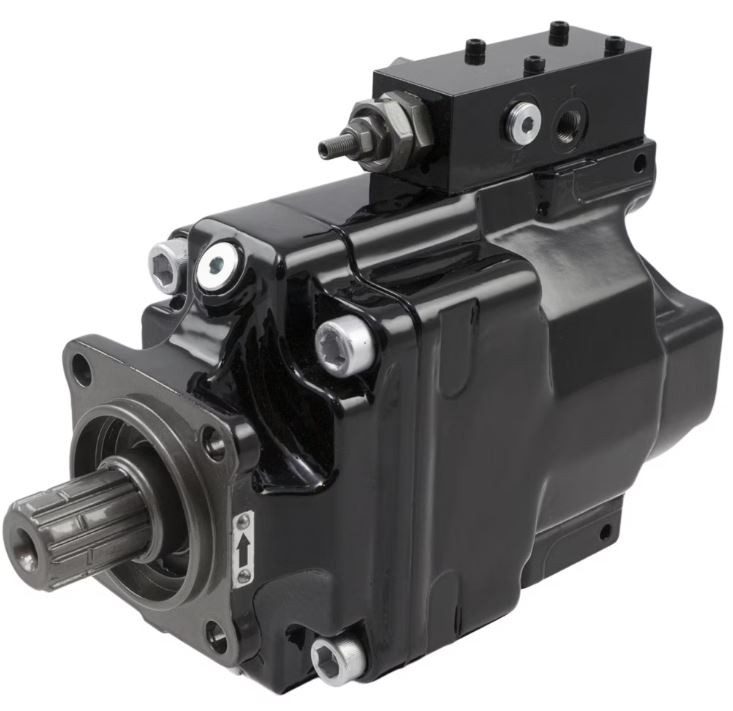

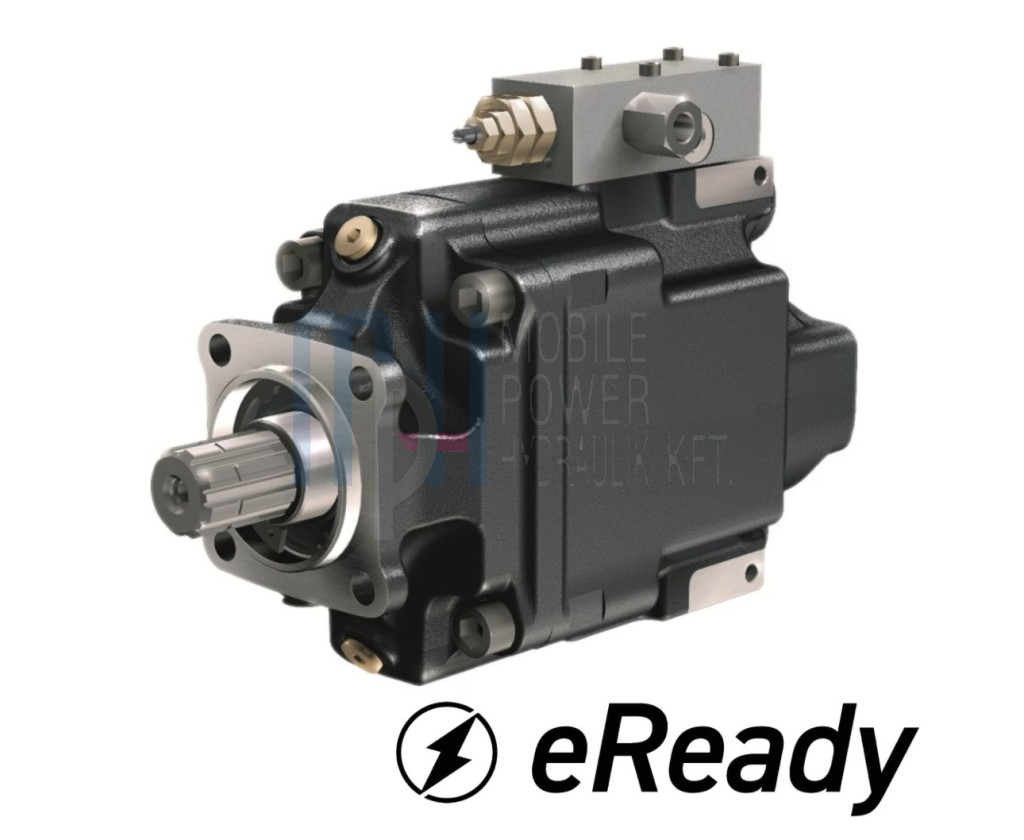

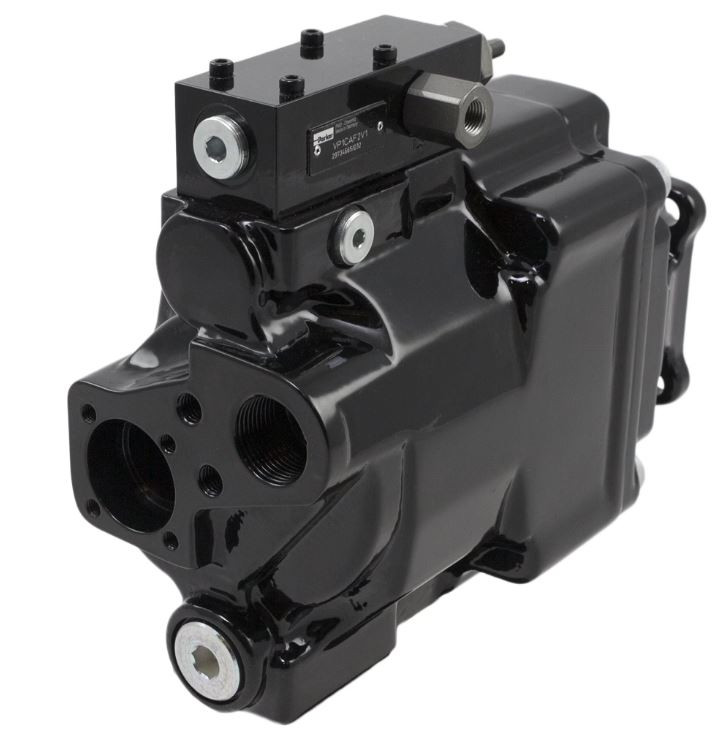

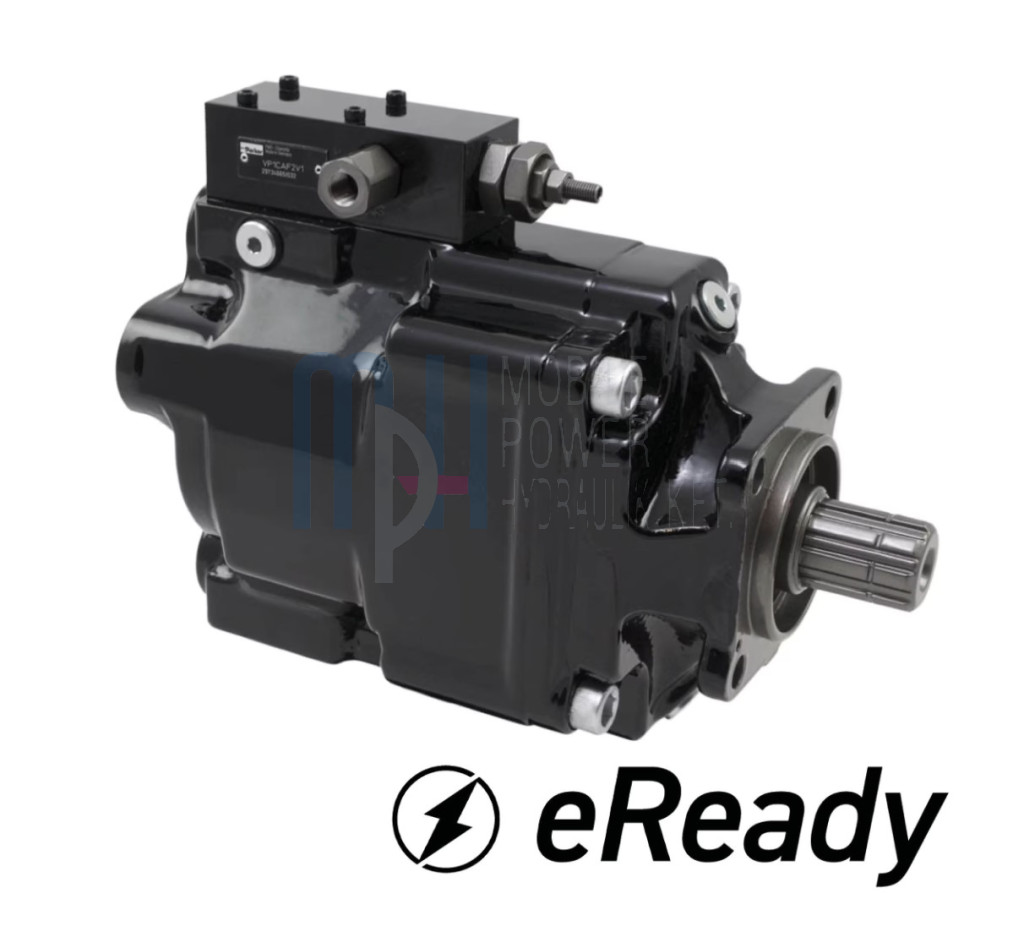

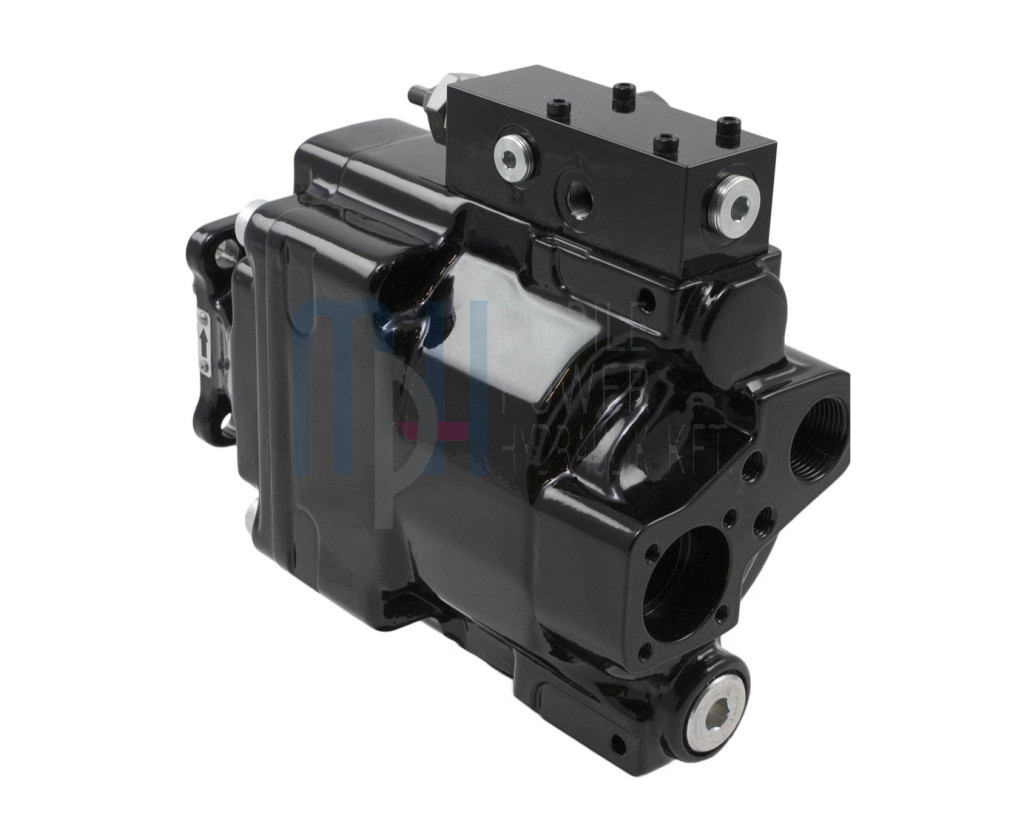

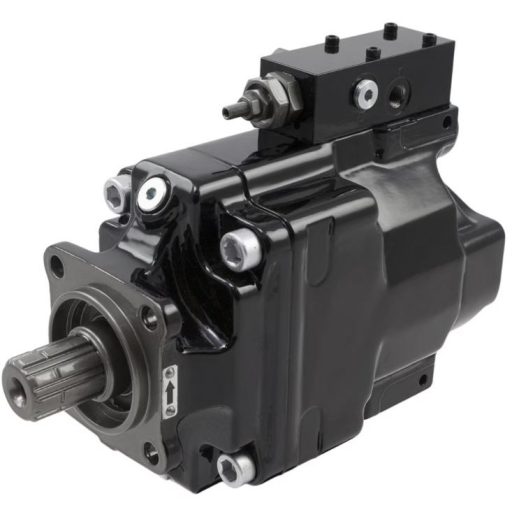

PARKER PISTON HYDRAULIC PUMP VP1-060-R
PARKER PISTON HYDRAULIC PUMP VP1-060-R PARKER PISTON HYDRAULIC PUMP VP1-060-R PARKER PISTON HYDRAULIC PUMP VP1-060-R
Details

Working Principle

Axial piston pumps like the VP1-060-R operate on a bent-axis design. Inside the pump, multiple pistons are moved axially by hydraulic pressure. The angled shaft converts this linear motion into rotary motion. The VP1-060-R has a fixed displacement, delivering steady flow and performance. It handles high operating pressures with ease, making it efficient for demanding hydraulic applications. Its durable build ensures reliable operation even under extreme conditions.

PARKER PISTON HYDRAULIC PUMP VP1-060-R

Article No.:
P_3722283
Available for order
2 783+VAT

The Parker VP1-060-R is an open-circuit axial piston hydraulic pump designed for heavy-duty industrial and mobile applications such as trucks and construction machinery. It features a displacement of 60 cm³/rev and handles continuous pressures up to 350 bar, with peak loads up to 400 bar.

The pump is equipped with LS (Load Sensing) control, which automatically adjusts flow to match system demand improving efficiency and reducing energy consumption. Thanks to its durable construction and high-speed capability (up to 3000 rpm), the VP1-060-R delivers reliable, long-lasting performance under tough conditions. This version has a right-hand rotation (R), so be sure to confirm compatibility with your drive system before ordering.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 60
Max. pressure (bar): 350
Design: AXIAL PISTON HYDRAULIC PUMP
Variable / Fixed displacement: Variable displacement hydraulic pump
Direction of rotation: Right
Manufacturer: PARKER
Manufacturer part number: 3722283
PARKER PISTON HYDRAULIC PUMP VP1-060-R
PARKER PISTON HYDRAULIC PUMP VP1-060-R
2 783+VAT
