PARKER PISTON HYDRAULIC PUMP F3-81-L-24VDC
PARKER PISTON HYDRAULIC PUMP F3-81-L-24VDC

PARKER PISTON HYDRAULIC PUMP F3-81-L-24VDC

Article No.:
P_3720092
Available for order

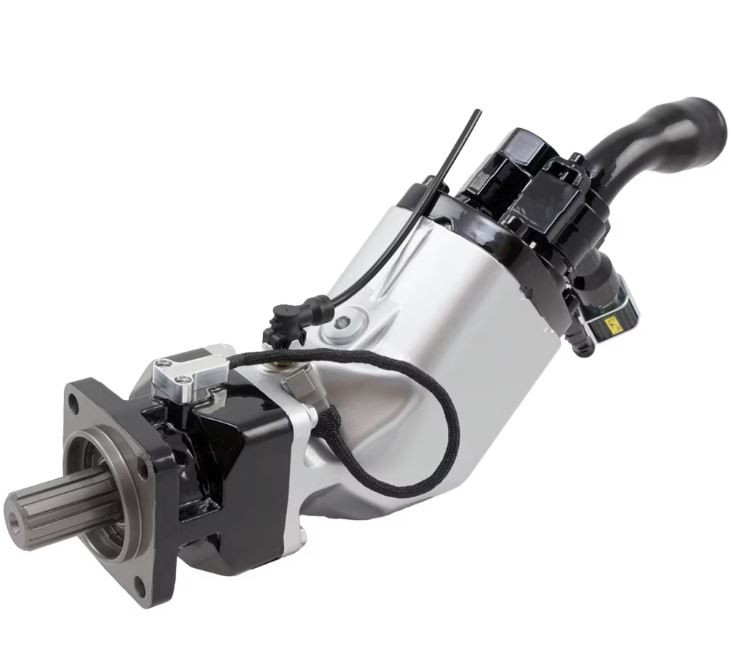

The Parker F3-81-L is a heavy-duty 3-piston hydraulic pump, ideal for use in industrial machinery, trucks, and work vehicles. With a displacement of 81.6 cm³/rev, it delivers a maximum flow rate of up to 180 l/min at operating pressures up to 350 bar.

The built-in 24 VDC electric bypass valve automatically regulates system pressure, helping prevent overload and ensuring smooth operation. This version features left-hand rotation (L), so it is important to verify compatibility with your drive configuration before ordering.



Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 81, 6 (180)
Max. pressure (bar): 400
Design: Axial piston pump, can be switched off
Variable / Fixed displacement: Constant volume displacement hydraulic pump
Direction of rotation: Left
Manufacturer: PARKER
Manufacturer part number: 3720092
PARKER PISTON HYDRAULIC PUMP F3-81-L-24VDC
PARKER PISTON HYDRAULIC PUMP F3-81-L-24VDC
