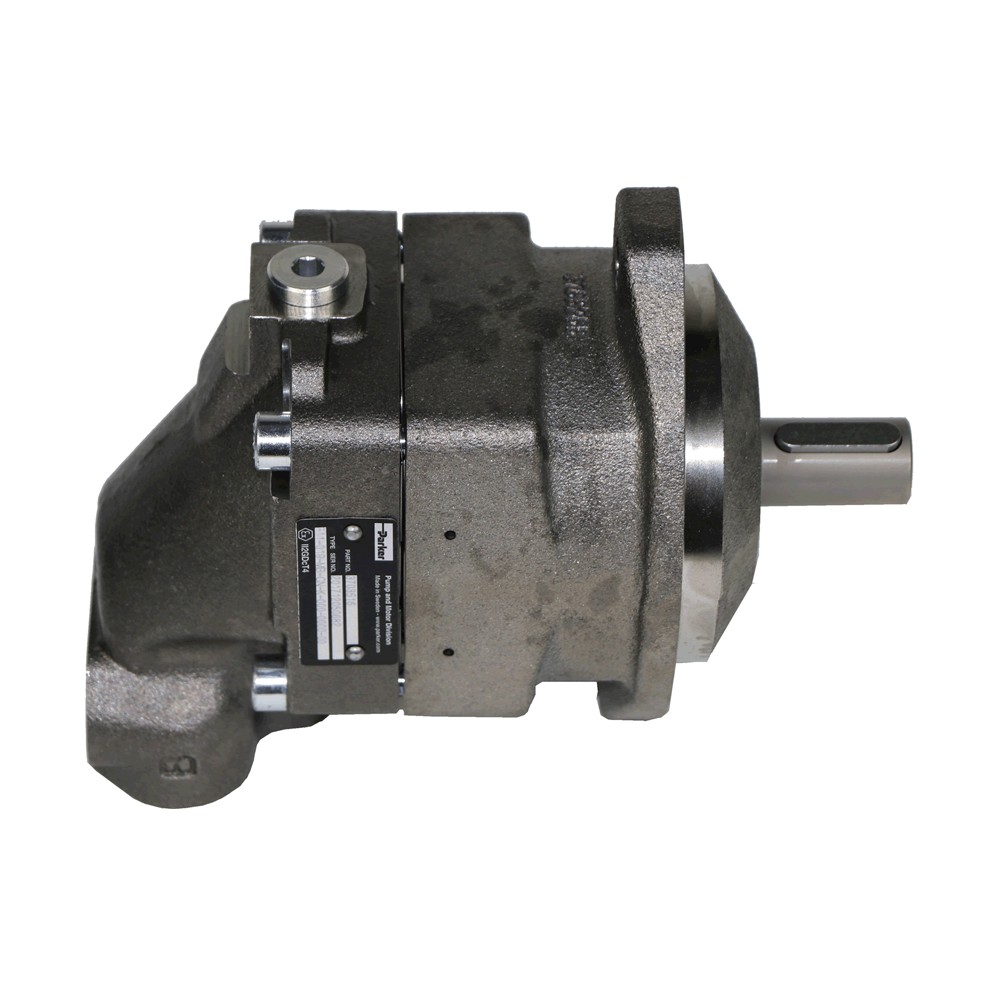

PARKER HYDRAULIC MOTOR F11-019 MB-CN-K-000

Name: PARKER HYDRAULIC MOTOR F11-019 MB-CN-K-000
Brand: PARKER
SKU: P_3703516
Price: 1956 EUR
Availability: OutOfStock

Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.

Delivery capacity (cm³/rev; liters/min): 19

Max. pressure (bar): 250

Direction of rotation: Neutral

Type of hydraulic motor: Hydraulic motor

Manufacturer: PARKER

Out of stock

1 540 €+VAT

Item number:

P_3703516

The Parker F11-019 is a compact and high-performance bent-axis piston motor designed for demanding industrial and mobile applications. With a displacement of 19 cm³/rev, it offers excellent speed and pressure capabilities, making it ideal for use in winches, rotary drives, or hydraulic tools.

The CETOP-standard "Type C" mounting flange and 3/4" BSP ports ensure easy and standardized installation. Its rugged design allows for continuous operation under high loads, even in space-constrained environments.

Direction of rotation

Details

Operating Principle

This motor operates based on a bent-axis axial piston design. Hydraulic fluid under pressure drives the pistons in a linear motion, which is converted into rotary motion through the inclined disc. The pistons move back and forth, driving a central shaft that generates rotation. The torque output is directly proportional to the hydraulic pressure applied. The design ensures high efficiency and stable operation even under variable load conditions.
