DRUM GD150 ROTARY VANE COMPRESSOR, GARDNER DENVER
Details

Operating Principle

The GD150 uses an eccentrically mounted rotor to create variable-volume chambers during rotation. These chambers compress air and direct it into the tank’s interior.

Thanks to its oil-free design, the system delivers clean air, making it suitable for sensitive substances like food or chemicals. Corrosion-resistant materials ensure long-term reliability even under heavy industrial use.



DRUM GD150 ROTARY VANE COMPRESSOR, GARDNER DENVER

Article No.:
K_GD150
In stock

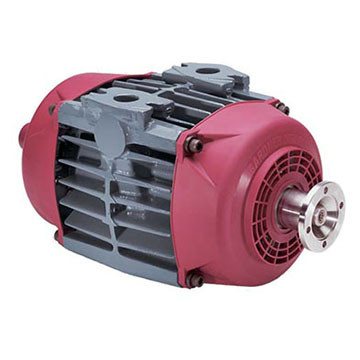

The DRUM GD150 compressor is a lightweight and compact oil-free rotary vane unit designed for the clean and efficient discharge of liquids from tanker trucks. Its stainless steel rotor and anodized aluminum housing offer high corrosion resistance with minimal maintenance needs.

Operating at up to 36 psi and delivering approximately 150 m³/h of air, it ensures rapid unloading cycles. The dual-shaft design and flexible mounting options make it easy to integrate into various vehicle configurations.



Manufacturer: Gardner Denver (DRUM)
Application: Folyékony ömlesztett anyagokhoz
Performance: Maximum 117 m3/óra (2,5 bar nyomáson)
Materials: Preferált: bitumen, gyanták, magasabb viszkozitású anyagok. Alternatív: folyékony élelmiszer, oldószerek, lúgok, savak, egyéb vegyszerek.
Info
Weight:
32 kg/db
