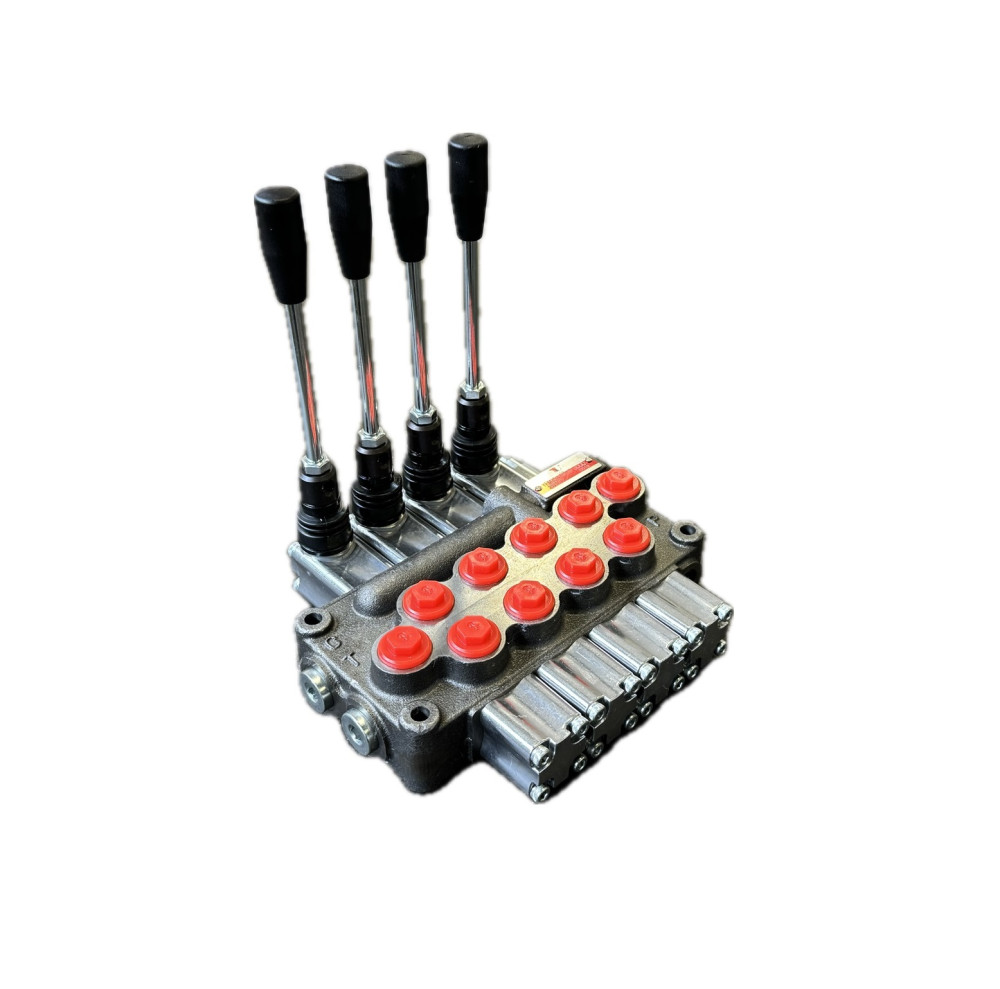

Hydraulic Monoblock Valve YFM35/4 3/8 4P DDDD
Product description:
The YFM35/4 3/8 4P DDDD is a four-section, manually operated hydraulic directional control valve that provides DE (double effect) – double-acting – control on all four working circuits. Each spool is equipped with a spring return mechanism, ensuring safe handling and stable hydraulic operation by automatically returning to the neutral position.
The valve supports a 45 l/min maximum flow rate and a 315 bar maximum operating pressure. The built-in pressure relief valve is factory-set at 140 bar and adjustable within a 60–200 bar range. The 3/8" BSP connections ensure compatibility with most compact and mobile hydraulic applications.
Technical specifications:
- Maximum flow rate: 45 l/min
- Maximum operating pressure: 315 bar
- Max. tank line pressure (T port): 25 bar
- Relief valve range: 60–200 bar (factory: 140 bar)
- Number of sections: 4
- Spool type: DDDD – four double-acting circuits
- Connections: 3/8" BSP (A, B, P, T ports)
Applications:
- Control of four double-acting cylinders
- Compact and mid-size hydraulic machinery
- Loader, lifting and handling equipment
- Industrial and agricultural applications requiring multi-circuit hydraulic control
The YFM35/4 3/8 4P DDDD valve is an excellent choice for systems requiring precise, stable and compact control of four independent double-acting hydraulic circuits through a single valve block.
