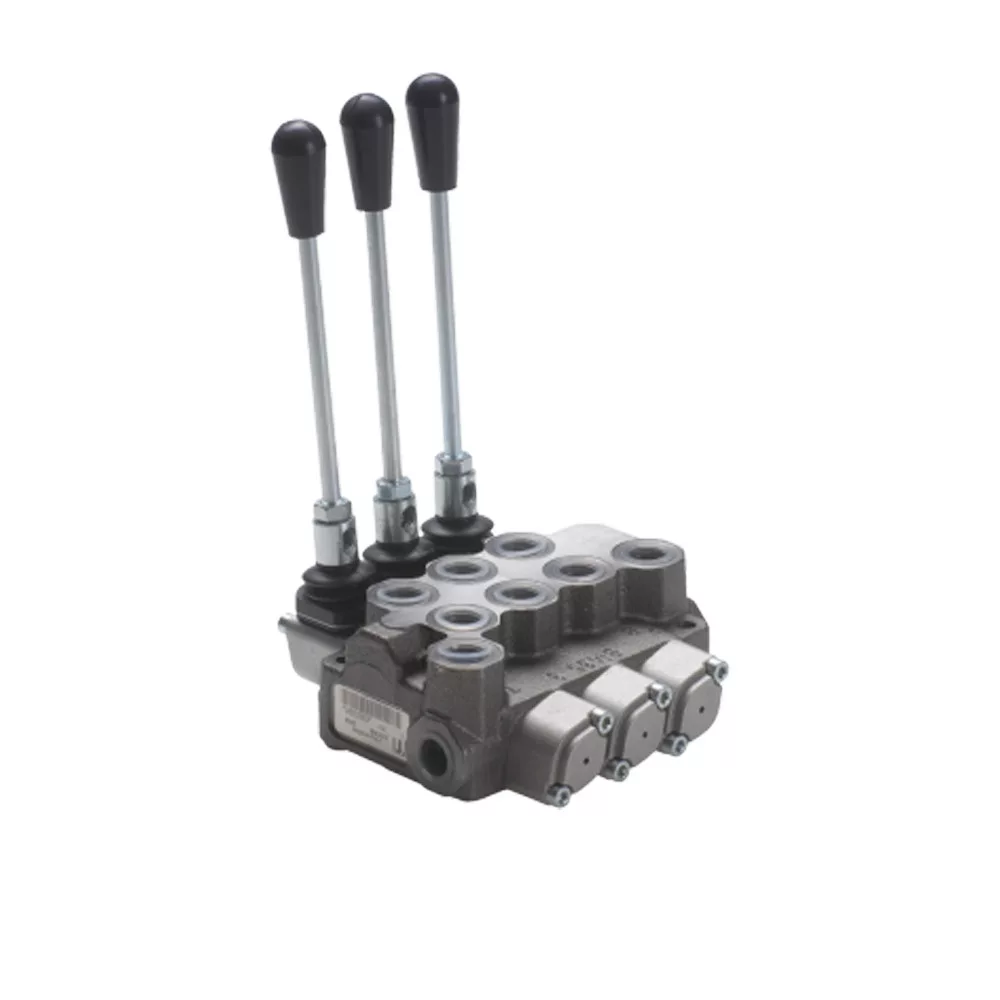

Hydraulic Monoblock Valve YFM35/3 3/8 3P DDD
Product description:
The YFM35/3 3/8 3P DDD is a three-section, manually operated hydraulic directional control valve that provides DE (double effect) – double-acting – control on all three working circuits. Each spool is equipped with a spring return mechanism, ensuring safe operation and stable hydraulic performance by automatically returning to the neutral position.
The valve is designed for systems with a 45 l/min maximum flow rate and a 315 bar maximum operating pressure. The built-in pressure relief valve is factory-set at 140 bar, adjustable within a 60–200 bar range. Thanks to its 3/8" BSP ports, the valve is compatible with compact mobile and industrial hydraulic systems.
Technical specifications:
- Maximum flow rate: 45 l/min
- Maximum operating pressure: 315 bar
- Max. tank line pressure (T port): 25 bar
- Relief valve range: 60–200 bar (factory: 140 bar)
- Number of sections: 3
- Spool type: DDD – three double-acting circuits
- Connections: 3/8" BSP (A, B, P, T ports)
Applications:
- Control of three double-acting cylinders
- Compact mobile and industrial hydraulic systems
- Loader, lifting and handling equipment
- Applications requiring precise control of multiple independent DE circuits
The YFM35/3 3/8 3P DDD valve provides a reliable and versatile solution for multi-circuit hydraulic systems where compact design and stable high-pressure control are essential.
