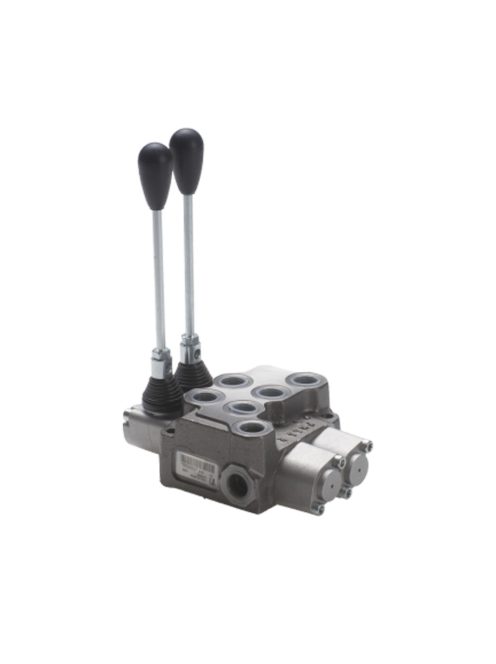

Hydraulic Monoblock Valve YFM35/2 3/8 2P DD
Product description:
The YFM35/2 3/8 2P DD is a two-section, compact and reliable manually operated hydraulic directional control valve that provides DE (double effect) – double-acting – control on both working circuits. Each spool features a spring return mechanism, ensuring safe and predictable operation even under intensive use.
The valve supports a 45 l/min maximum flow rate and a 315 bar maximum operating pressure, making it an excellent choice for small and medium-capacity hydraulic systems. The built-in pressure relief valve is factory-set at 140 bar, with an adjustable range of 60–200 bar. The 3/8" BSP connections provide broad compatibility with mobile hydraulic applications.
Technical specifications:
- Maximum flow rate: 45 l/min
- Maximum operating pressure: 315 bar
- Max. tank line pressure (T port): 25 bar
- Relief valve range: 60–200 bar (factory: 140 bar)
- Number of sections: 2
- Spool type: DD – two double-acting circuits
- Connections: 3/8" BSP (A, B, P, T ports)
Applications:
- Control of two double-acting hydraulic cylinders
- Compact machinery and small industrial equipment
- Mobile hydraulic systems
- Simple multi-circuit hydraulic applications
The YFM35/2 3/8 2P DD valve, with its robust construction and high reliability, is ideal for systems requiring precise, stable and safe control of two independent double-acting hydraulic circuits.
