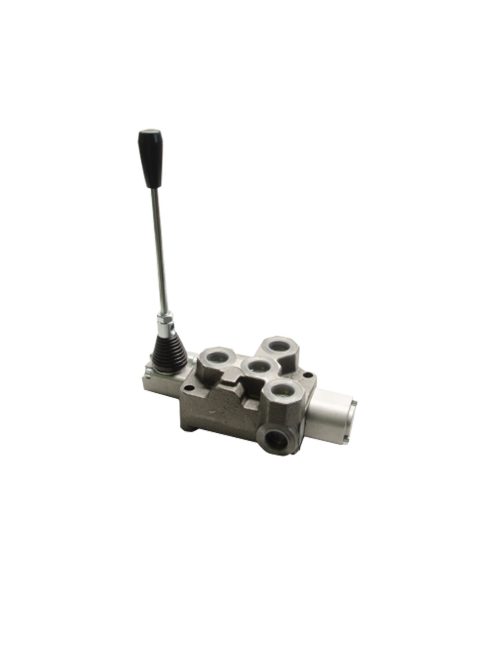

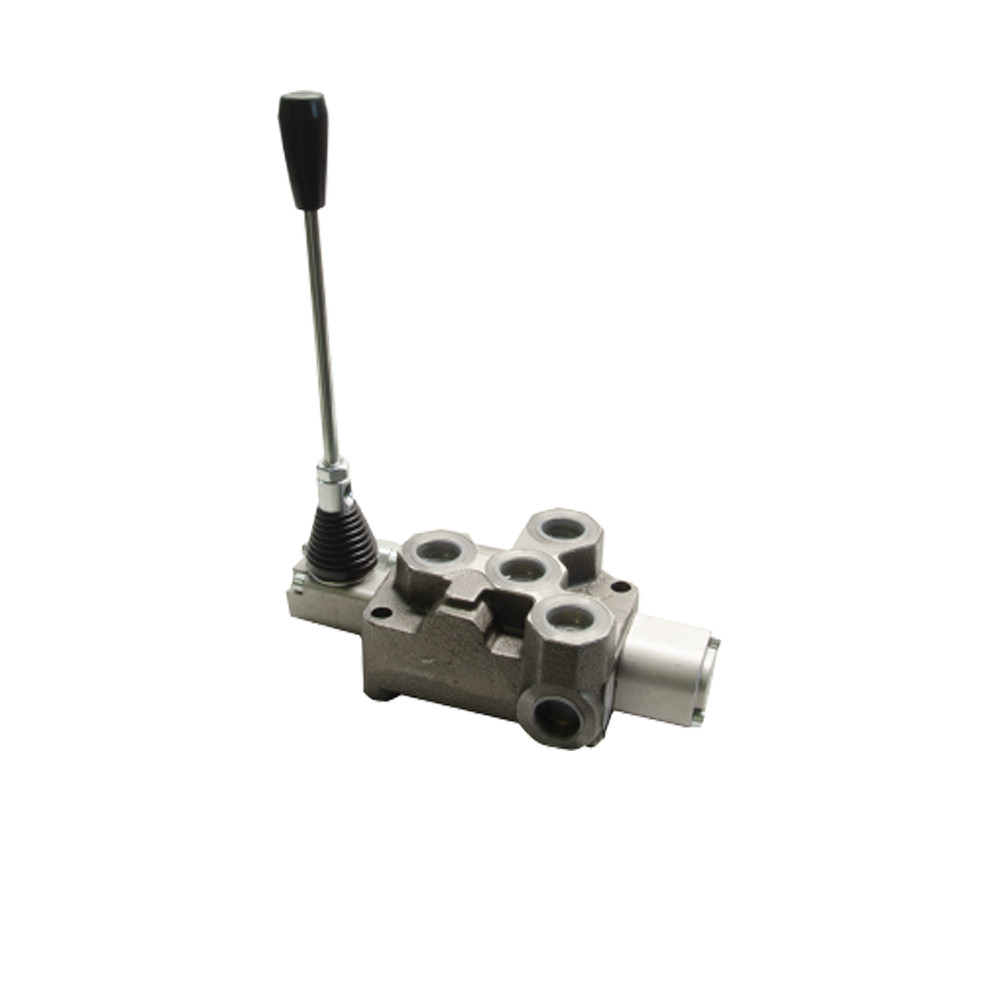

Hydraulic Monoblock Valve YFM35/1 3/8 1P DE
Product description:
The YFM35/1 3/8 1P DE is a compact, single-section, manually operated hydraulic directional control valve designed for controlling DE (double effect) – double-acting – hydraulic circuits. The lever features a spring return mechanism, ensuring increased operational safety and stable system behaviour by automatically returning to the neutral position.
The valve supports a 45 l/min maximum flow rate and a 315 bar maximum operating pressure, making it suitable for medium-capacity hydraulic systems. The built-in pressure relief valve is factory-set at 140 bar and adjustable within a 60–200 bar range. The 3/8" BSP ports ensure compatibility with most compact hydraulic circuits.
Technical specifications:
- Nominal/maximum flow rate: 45 l/min
- Maximum operating pressure: 315 bar
- Max. tank line pressure (T port): 25 bar
- Relief valve range: 60–200 bar (factory: 140 bar)
- Number of sections: 1
- Spool type: DE – double-acting
- Connections: 3/8" BSP (A, B, P, T ports)
Applications:
- Control of double-acting hydraulic cylinders
- Compact and mid-size hydraulic systems
- Small machinery, municipal and industrial equipment
- Any application requiring precise manual control
The YFM35 series offers a reliable, durable and cost-effective solution wherever precise manual control and compact design are essential.
