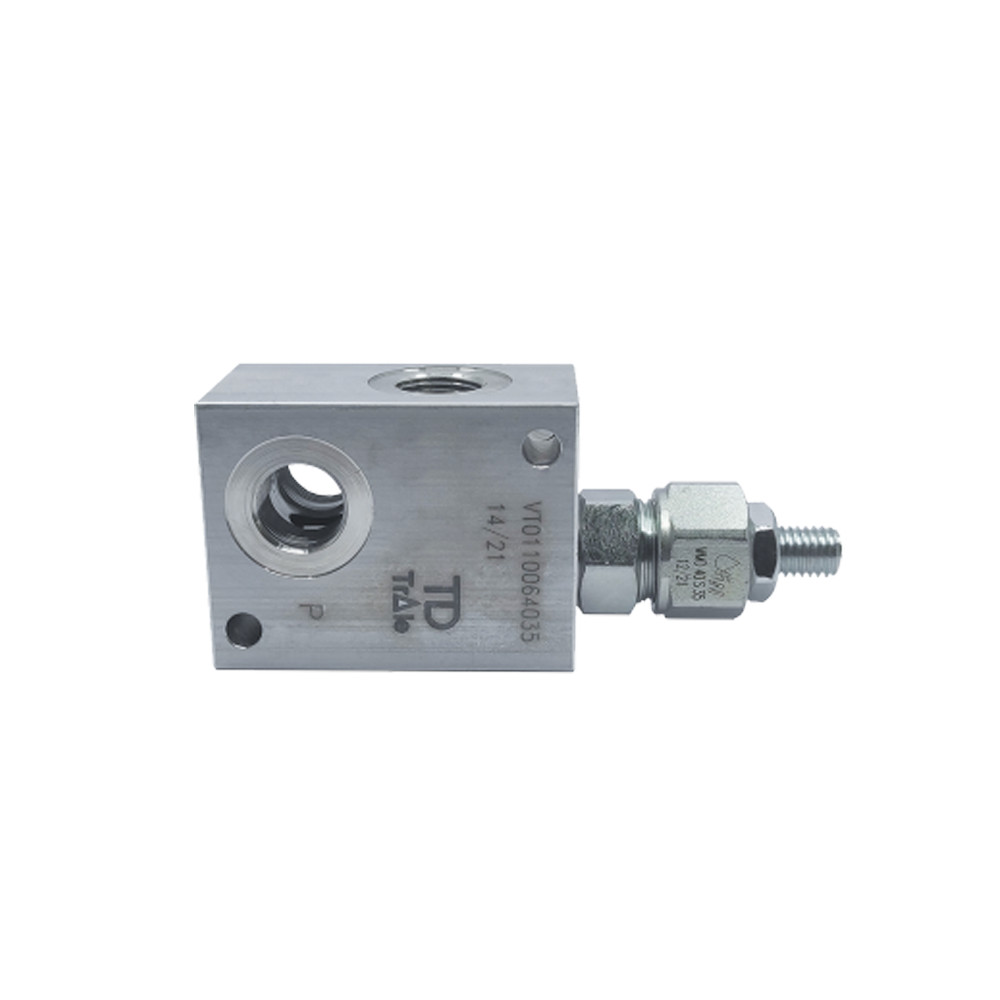

VMP 3/8" HYDRAULIC RELIEF VALVE

Name: VMP 3/8" HYDRAULIC RELIEF VALVE
Brand: DICSA
SKU: HK_VT0110064035
Price: 40 EUR
Availability: InStock

Type of valve: Relief valve

Max. pressure: 250 bar

Connection: 3/8" BSP

Adjustment range: 80-350 bar

Max. flow rate: 40 l/min

Manufacturer: DICSA

Manufacturer part number: VT0110064035

In stock

32 €+VAT

Item number:

HK_VT0110064035

VT0110064035 3/8” BSP – In-line pressure relief valve

Product description:

The VT0110064035 in-line pressure relief valve is designed for controlling and safely limiting the maximum pressure in hydraulic systems. The adjustable control screw design allows precise setting of the required pressure value, effectively protecting system components against overload. Its reliable performance makes it suitable for high-duty hydraulic applications.

Main features:

Type: In-line pressure relief valve (adjustment screw)
Part number: VT0110064035
Port connection (R1): 3/8” BSP
Max. flow rate: 40 l/min
Maximum operating pressure: 250 bar
Preset pressure: 80 bar
Adjustment range: 80–350 bar
Pressure increase per turn: 80 bar/turn
Weight (cartridge only): 0.17 kg
Weight (cartridge + body): 0.41 kg

Data

Weight:

300 g/pc(s)

Details

Operating principle

The VMP 3/8" pressure relief valve operates based on a spring-loaded conical poppet that keeps the hydraulic system closed under normal operating conditions. When the system pressure exceeds the preset limit, the hydraulic force overcomes the spring tension, causing the poppet to open. This allows excess oil to flow out through the tank port (T), effectively reducing the system pressure.

Once the pressure drops back below the set threshold, the spring pushes the poppet back into its seat, closing the valve and stopping the flow ensuring stable and safe operation of the hydraulic system.
