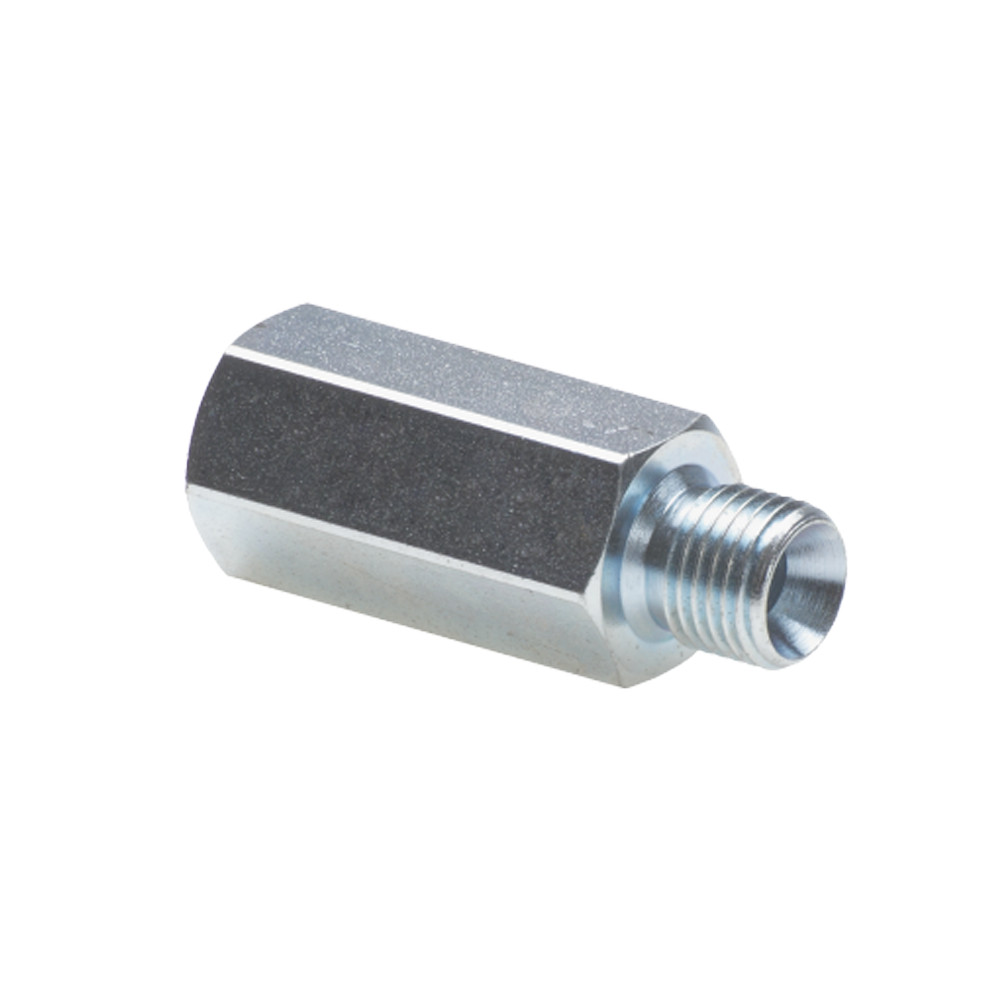

HYDRAULIC HOSE BREAK VALVE 1/4" KB

Article No.:
HK_VT007004
HYDRAULIC HOSE BREAK VALVE 1/4" KB
HYDRAULIC HOSE BREAK VALVE 1/4" KB
Delivery time: The product is currently in an external warehouse, so it may reach you within 4-8 business days.
Delivery capacity (cm³/rev; liters/min): 25
Type of valve: Hose break valve
Max. pressure: 350 bar
Connection: 1/4" BSP
Max. flow rate: 25 l/min
Manufacturer: DICSA
Available for order
16+VAT

The 3/8" hydraulic hose break valve (male-female) is a vital safety device used in hydraulic systems to prevent accidents caused by hose failure. Designed for industrial and transport applications, this valve supports a flow rate of up to 50 l/min and can withstand maximum operating pressures up to 350 bar.

Its compact steel body allows easy integration into existing systems, especially in lifting platforms, cranes, and material handling equipment. The male-female thread configuration ensures quick and secure installation without additional fittings.



Info
Weight:
300 g/pc(s)
Details

Operating Principle

This valve operates by monitoring the flow rate in the hydraulic circuit. Under normal conditions, fluid passes freely in both directions. However, if a hose suddenly bursts and the fluid tries to exit too rapidly, the valve instantly closes, restricting the flow and preventing uncontrolled descent of loads.

This automatic shut-off function ensures safety for both equipment and personnel, eliminating the risk of free-fall in elevated hydraulic systems.

HYDRAULIC HOSE BREAK VALVE 1/4" KB
HYDRAULIC HOSE BREAK VALVE 1/4" KB
16+VAT
