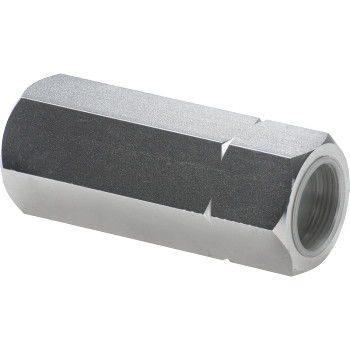

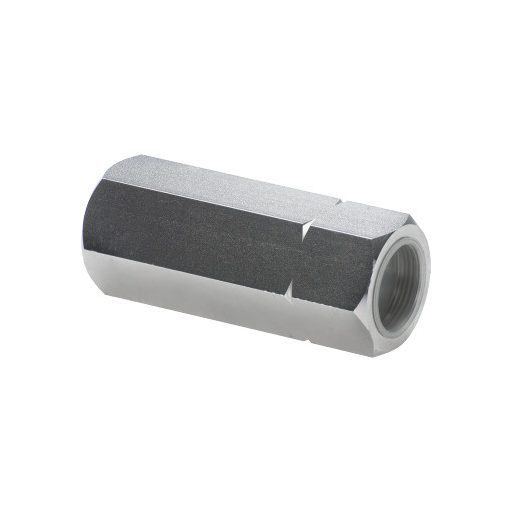

VU 1/2" HYDRAULIC CHECK VALVE
VT001008 1/2” BSP – Inline check valve
Product description:
The VT001008 inline check valve allows free flow in one direction while preventing reverse flow in hydraulic circuits. It ensures reliable pressure retention and protects hydraulic components in general hydraulic applications.
Main features:
- Type: Inline check valve
- Code: VT001008
- Connection: 1/2” BSP
- Maximum flow rate: 45 l/min
- Maximum operating pressure: 320 bar
- Cracking pressure: 0.5 bar
- Body material: Steel
Operating Principle
This check valve allows fluid to flow in only one direction, automatically blocking flow from the opposite side. Inside the valve is a spring-loaded mechanism that normally keeps the valve closed.
When oil pressure from the designated direction reaches 5 bar, the spring compresses, allowing the fluid to pass through. If fluid tries to reverse flow, the spring pushes the sealing element back into position, preventing backflow, an essential feature for system protection and operational safety.
