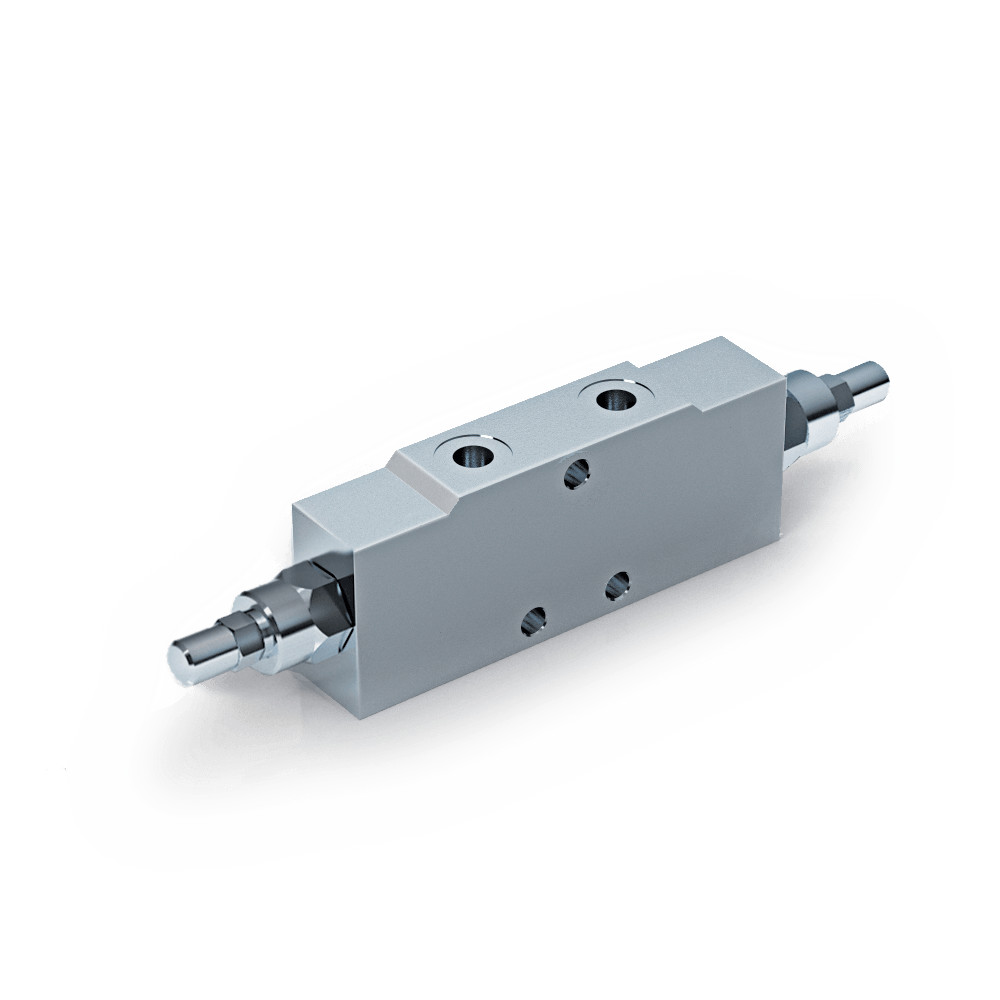

OM VBCD 3/8" DE-A DOUBLE OVERCENTRE VALVES

Article No.:
HK_VO422
OM VBCD 3/8" DE-A DOUBLE OVERCENTRE VALVES
OM VBCD 3/8" DE-A DOUBLE OVERCENTRE VALVES OM VBCD 3/8" DE-A DOUBLE OVERCENTRE VALVES
Type of valve: Overcenter
Max. pressure: 350 bar
Connection: 3/8“
Control ratio: 1:4,5
Max. flow rate: 40 l/min
Manufacturer: Oleodinamica Marchesini
Manufacturer part number: V0422
In stock
66+VAT

The OM VBCD 3/8" DE A double overcenter valve is a compact, high-safety hydraulic control component designed to manage the movement of double-acting cylinders. With a maximum pressure rating of 350 bar, it ensures secure and reliable operation in machinery such as cranes, lifts, or industrial handling equipment.

Its dual-flow regulation allows controlled movement in both directions while preventing load drift or unintentional drops under pressure. The 3/8" BSP connections provide easy integration into standard hydraulic systems.



Info
Weight:
500 g/pc(s)
Details

Working Principle

This double overcenter valve operates on both directions of a double-acting cylinder, regulating return flow only when pilot pressure is applied. It maintains load stability by locking the actuator in place until commanded otherwise, preventing uncontrolled movement due to external forces or gravity. Each side includes a check valve and a pressure relief circuit, allowing smooth and safe motion control.

This design minimizes hydraulic shocks, enhances equipment safety, and is ideal for systems where load holding and precise control are critical.

OM VBCD 3/8" DE-A DOUBLE OVERCENTRE VALVES
OM VBCD 3/8" DE-A DOUBLE OVERCENTRE VALVES
66+VAT
