Operating principle

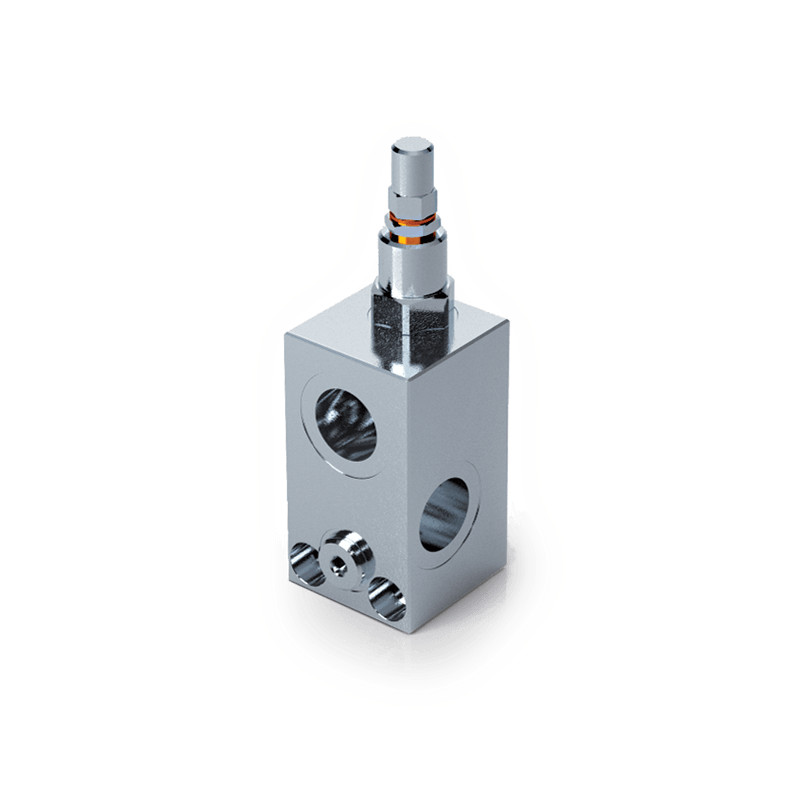

This valve remains closed under normal operating pressure, allowing hydraulic fluid to flow freely to the system. When the system pressure exceeds the preset limit, the valve opens and diverts excess fluid to the tank (T), thereby reducing pressure and preventing potential damage.
Once the pressure drops back to a safe level, the valve closes automatically. The relief setting can be precisely adjusted via the screw on the valve body, allowing it to be tailored to the specific requirements of the application.
