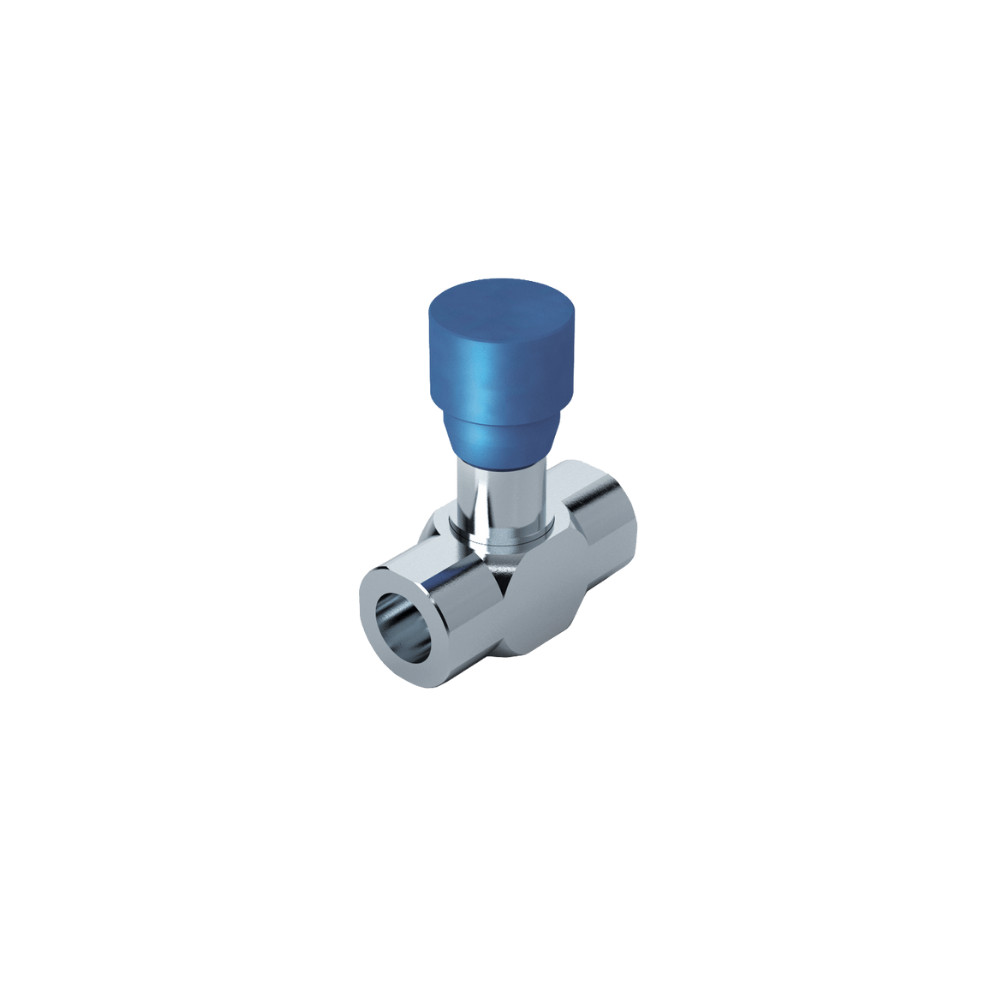

OM VRFB 90° 1/2" FLOW REGULATOR

Name: OM VRFB 90° 1/2" FLOW REGULATOR
Brand: Oleodinamica Marchesini
SKU: HK_V0587
Price: 43 EUR
Availability: OutOfStock

Delivery time: A termék jelenleg külső raktárban van, így a termék 4-8 munkanapon belül kerülhet Önhöz

Type of valve: Flow regulator

Max. pressure: 350 bar

Connection: 1/2” BSP

Max. flow rate: 50 l/min

Manufacturer: Oleodinamica Marchesini

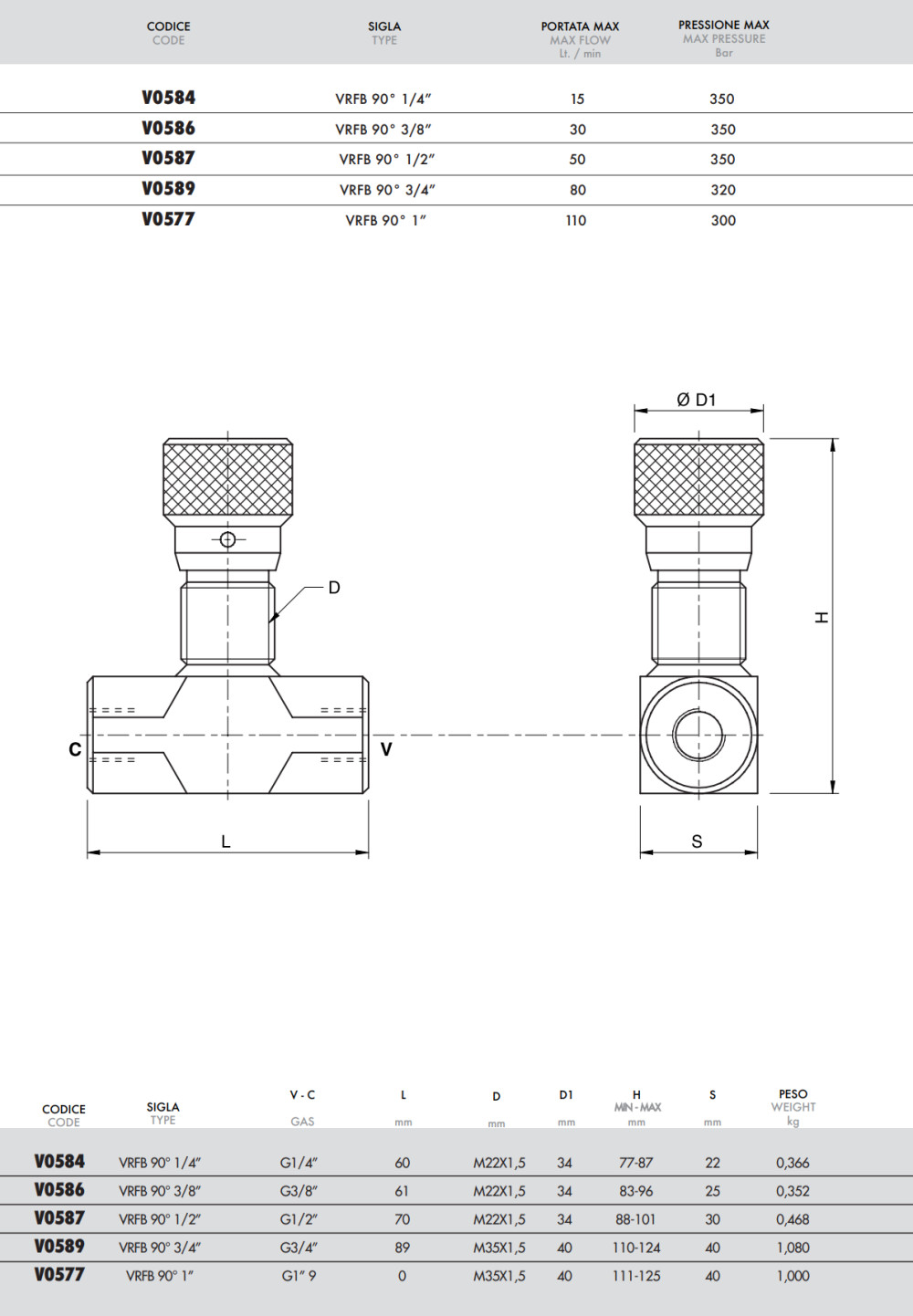

Datasheet: Kattintson ide a letöltéshez

Manufacturer part number: V0587

Out of stock

34 €+VAT

Item number:

HK_V0587

V0587 1/2” BSP – Bidirectional 90° flow control valve

Product description:

The V0587 VRFB 90° bidirectional flow control valve is designed to regulate actuator speed in both directions in hydraulic systems. The 90° configuration allows for a compact and well-organized piping layout. The valve is not pressure-compensated, meaning the flow rate depends on system pressure and oil viscosity, while still providing highly precise and sensitive adjustment.

Main features:

Type: VRFB 90° – bidirectional flow control valve
Part number: V0587
Connection (V–C): G 1/2”
Max. flow rate: 50 l/min
Maximum operating pressure: 350 bar
Adjustment method: Fine needle valve with manual adjustment knob
Housing material: Zinc-plated steel
Weight: 0.468 kg

Data

Weight:

50 g/pc(s)

Details

Operating principle

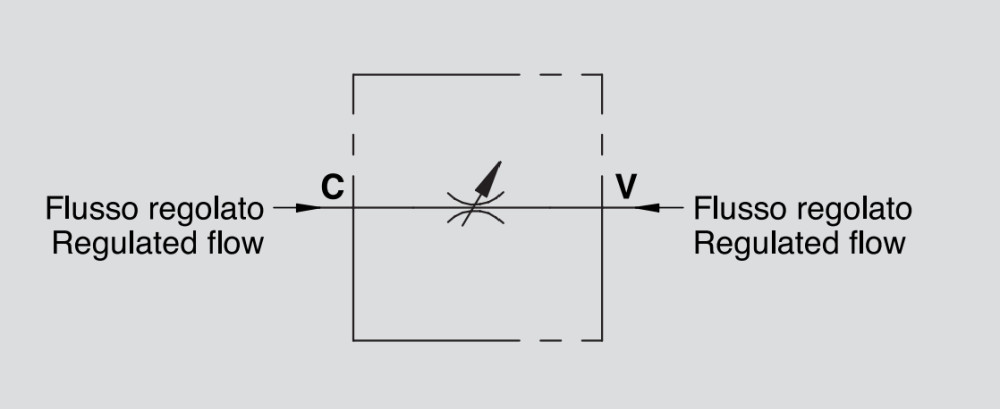

Inside the valve is a precision needle mechanism that allows fine adjustment of flow in both directions. This bidirectional regulation is especially useful for systems using double-acting cylinders or actuators where both extension and retraction need to be smoothly controlled.

The adjustment screw lets the user fine-tune the flow rate as needed. This enhances the overall accuracy of the hydraulic system and helps extend the lifespan of its components.
