OM VRFU 90° 1/4" FLOW REGULATOR

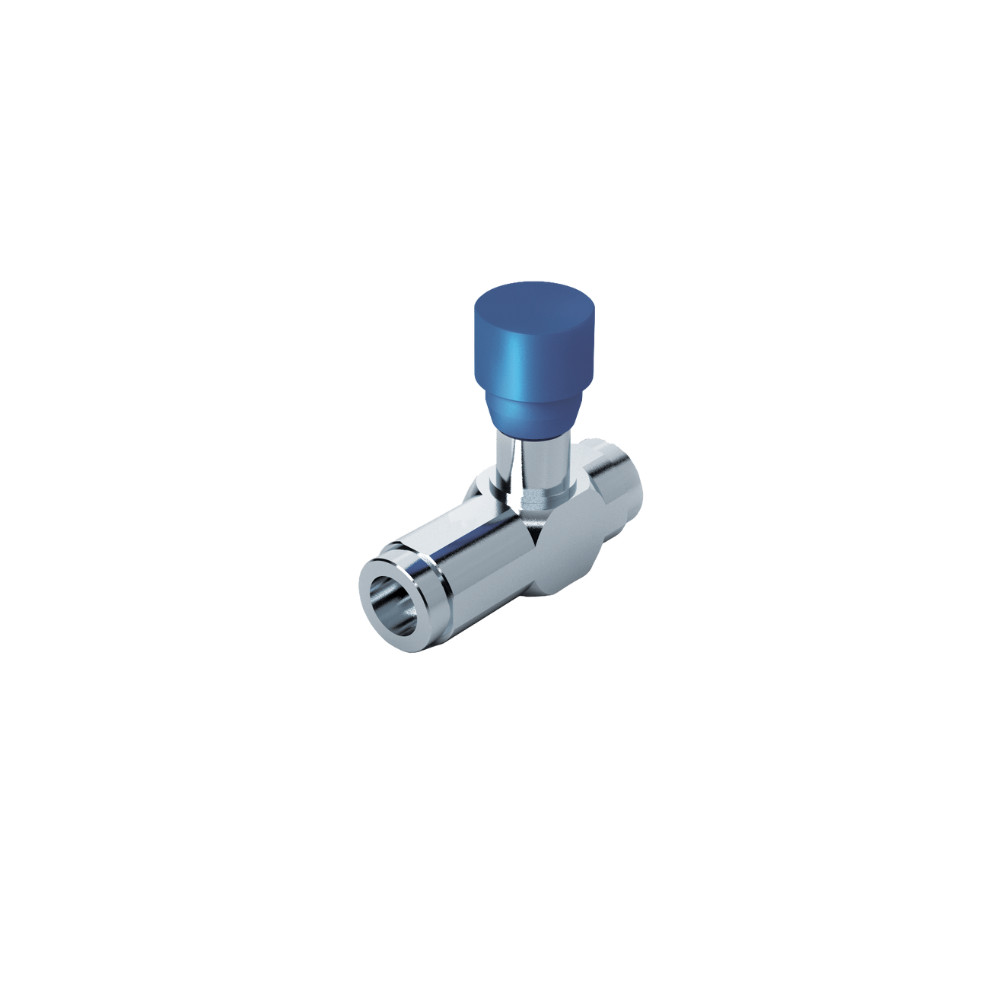

V0581 1/4” BSP – One-way 90° flow control valve
Product description:
The V0581 VRFU 90° one-way flow control valve is designed to control actuator speed in one direction in hydraulic systems, while allowing free flow in the opposite direction. The 90° configuration enables compact installation even in confined spaces. The valve is not pressure-compensated, meaning the flow rate depends on system pressure and oil viscosity; however, it provides highly sensitive and precise adjustment.

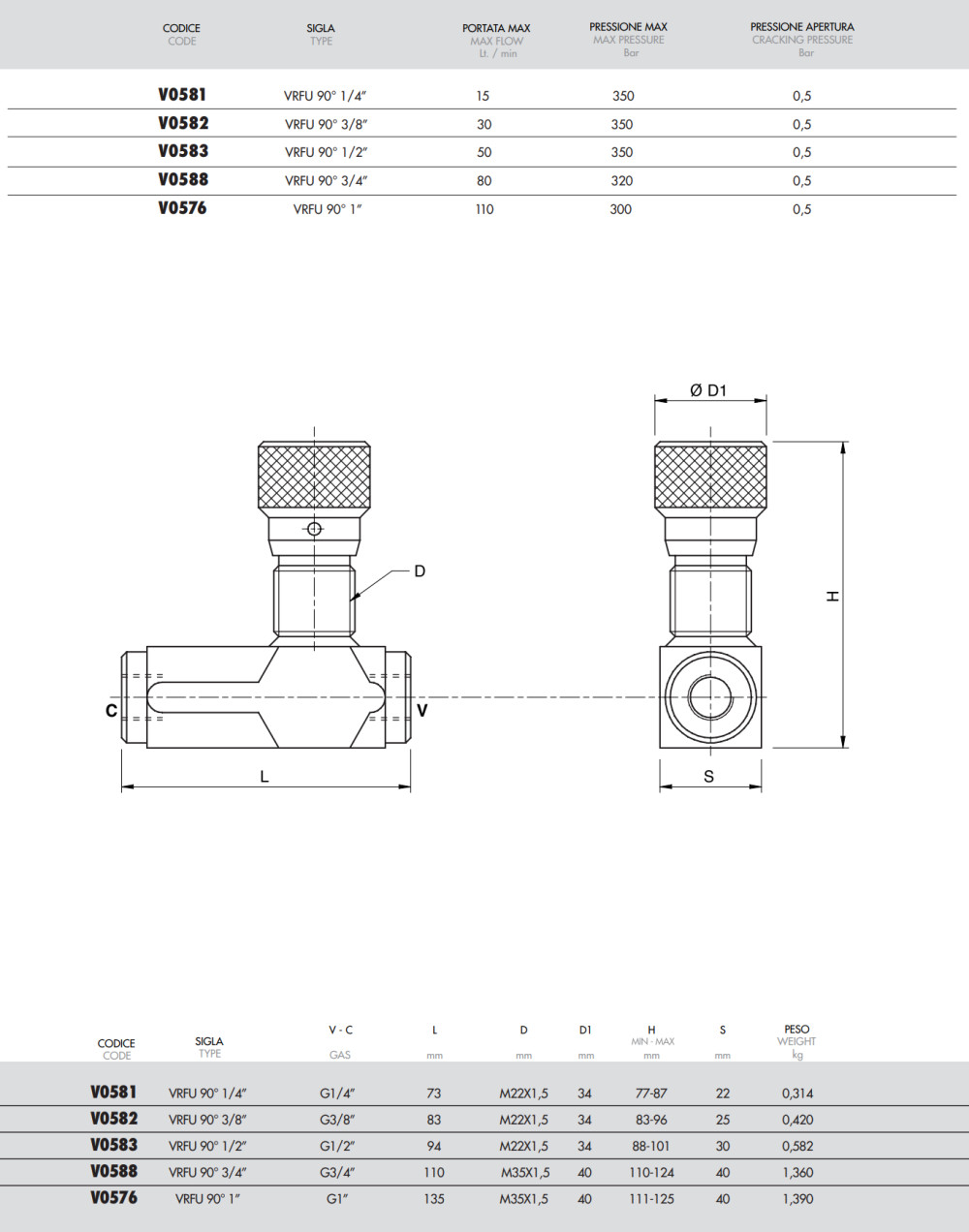

Main features:
- Type: VRFU 90° – one-way flow control valve
- Part number: V0581
- Connection (V–C): G 1/4”
- Max. flow rate: 22 l/min
- Maximum operating pressure: 350 bar
- Adjustment method: Fine needle valve with manual adjustment knob
- Housing material: Zinc-plated steel
- Weight: 0.314 kg
Operating principle

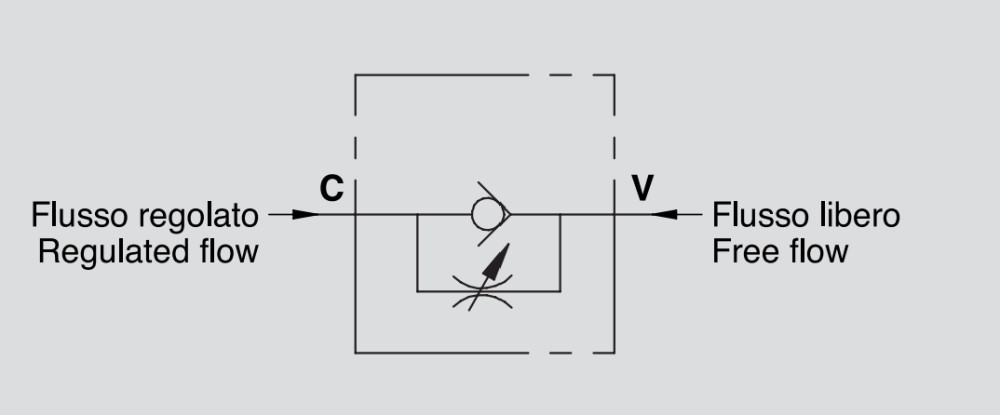

The valve restricts flow from port C to V using an adjustable needle, enabling precise control of fluid speed such as during cylinder lowering. In the opposite direction, the integrated check valve opens fully, allowing unrestricted return flow ideal for quick retraction or lifting.
This dual functionality enhances both performance and safety in hydraulic operations.
