OMT FILTER OMTP100-3HN2-40 Lev.

Name: OMT FILTER OMTP100-3HN2-40 Lev.
Brand: OMT
SKU: HK_OMTP103F25N2-B
Price: 116 EUR
Availability: OutOfStock

Delivery time: A termék jelenleg külső raktárban van, így a termék 4-8 munkanapon belül kerülhet Önhöz

Delivery capacity (cm³/rev; liters/min): 80 l/min

Max. pressure (bar): 10

Connection: 1" BSP

Filtration fineness: 25 µm

Material: Glass fiber

Burst pressure: 30 bar

Operating temperature: -20°C / +90°C

Manufacturer: OMT

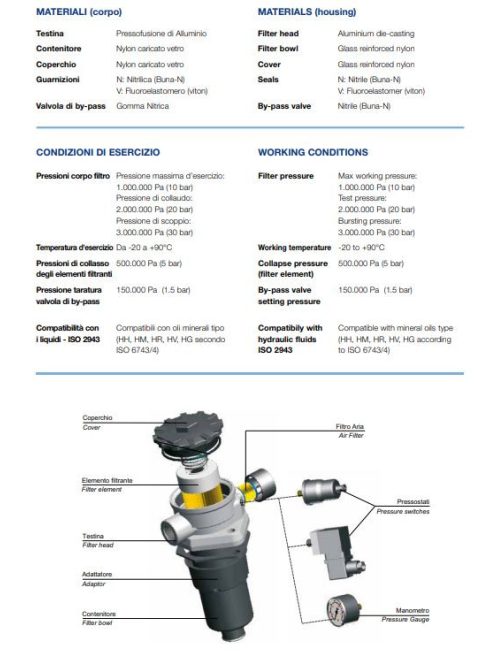

Datasheet: Click here to download

Manufacturer part number: OMTP103F25N2-B

Out of stock

91 €+VAT

Item number:

HK_OMTP103F25N2-B

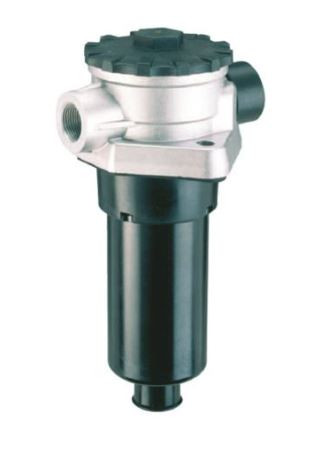

The OMT OMTP100-3HN2 hydraulic return-line filter is well-suited for smaller industrial or mobile systems with flow rates up to 40 L/min. Its integrated 25 µm filter element effectively removes medium-sized contaminants such as metal particles, sludge, and rust, protecting critical system components.

Thanks to its compact size and standard connection, it can be easily integrated into existing setups. The filter element is designed for quick, tool-free replacement, minimizing maintenance downtime.

Data

Weight:

1 kg/pc(s)

Details

Operating principle

The filter is positioned in the return line of the hydraulic system, where the fluid flows through the element. The filter media traps particles larger than 25 µm such as metal shavings, dust, or sludge ensuring that only clean fluid returns to the system. This helps extend the lifespan of mechanical components and improves overall reliability. Its high dirt-holding capacity and low pressure drop design enable efficient operation, while the element can be replaced quickly without tools.
