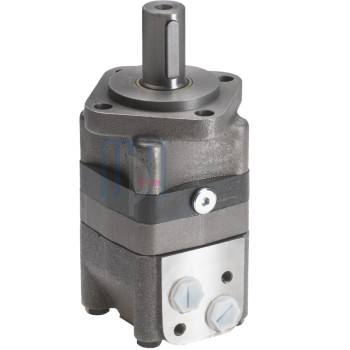

Hydraulic Motor MOMS100
Product Description:
The MOMS100 is a medium-to-high displacement, high-performance hydraulic motor, making it an excellent choice for both mobile and industrial hydraulic drive applications. The 32 mm shaft ensures outstanding torque transmission and long service life, while the motor’s strong and durable construction guarantees reliable operation even under heavy loads. The motor is equipped with 1/2” BSP inlet and outlet ports, as well as a 1/4” BSP case drain (T) connection. With a displacement of 100.5 cm³/rev, it provides an optimal balance between torque and speed, making it suitable for a wide variety of hydraulic systems.

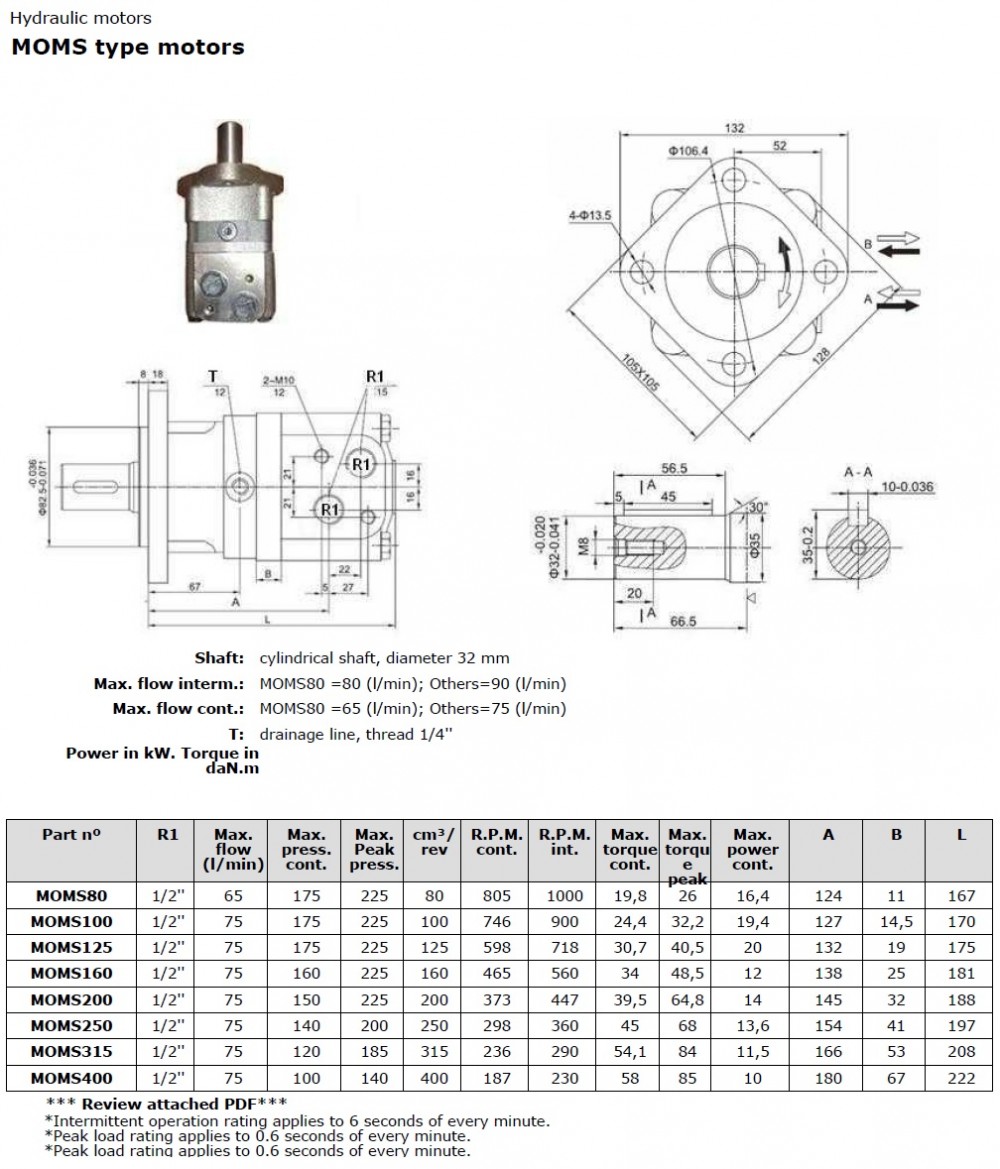

Main Features:
- Type: MOMS100
- Ports (IN/OUT): 1/2” BSP
- Case drain port (T): 1/4” BSP
- Shaft design: 32 mm diameter shaft
- Displacement: 100.5 cm³/rev
- Max. operating pressure (continuous): 175 bar
- Intermittent pressure (P2): 200 bar
- Peak pressure (P3): 225 bar
- Maximum speed (continuous): 745 rpm
- Maximum speed (intermittent): 900 rpm
- Maximum torque (continuous): 244 Nm
- Maximum torque (peak): 322 Nm
- Maximum power: 18 kW
