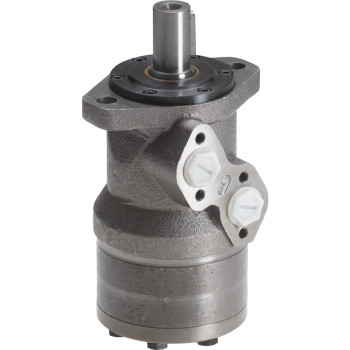

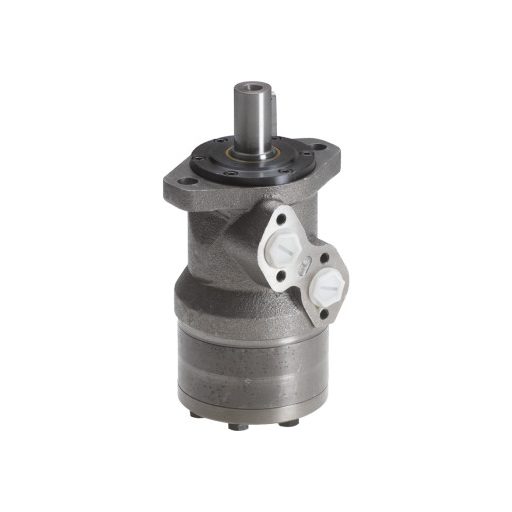

Hydraulic Motor MOMR80
Product Description:
The MOMR80 is a reliable, compact and high-performance hydraulic motor designed for both mobile and industrial hydraulic drives. The 25 mm shaft ensures efficient torque transmission, while its robust construction and 200 bar peak pressure capability enable long-term, durable operation. The motor is equipped with 1/2” BSP inlet and outlet ports, as well as a 1/4” BSP case drain (T) connection. With a displacement of 80 cm³/rev, it offers an excellent balance between high torque output and optimal rotational speed, making it suitable for a wide range of hydraulic applications.
Main Features:
- Type: MOMR80
- Connection (IN/OUT): 1/2” BSP
- Case Drain Port (T): 1/4” BSP
- Shaft Design: 25 mm diameter shaft
- Displacement: 80 cm³/rev
- Max. Operating Pressure (continuous): 140 bar
- Intermittent Pressure (P2): 175 bar
- Peak Pressure (P3): 200 bar
- Maximum Speed (continuous): 745 rpm
- Maximum Speed (intermittent): 940 rpm
- Maximum Torque (continuous): 152 Nm
- Maximum Torque (peak): 216 Nm
- Maximum Power: 10 kW
- Max. Flow Rate: 75 l/min
