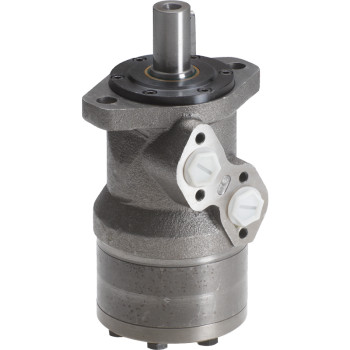

Hydraulic Motor MOMR200
Product Description:
The MOMR200 is a high-displacement, high-torque hydraulic motor specifically designed for slow-speed, heavy-duty hydraulic drives. Its robust construction, 25 mm shaft and 200 bar peak pressure ensure reliable operation in both industrial machinery and mobile hydraulic systems. The motor is equipped with 1/2” BSP inlet and outlet ports, as well as a 1/4” BSP case drain (T). With a displacement of 200 cm³/rev, it delivers very high torque at low speeds, making it ideal for winches, drives, slewing units and other demanding applications.
Main Features:
- Type: MOMR200
- Connections (IN/OUT): 1/2” BSP
- Case drain connection (T): 1/4” BSP
- Shaft design: 25 mm diameter shaft
- Displacement: 200 cm³/rev
- Max. operating pressure (continuous): 140 bar
- Intermittent pressure (P2): 175 bar
- Peak pressure (P3): 200 bar
- Max. speed (continuous): 300 rpm
- Max. speed (intermittent): 370 rpm
- Max. torque (continuous): 369 Nm
- Max. torque (peak): 509 Nm
- Max. power: 8 kW
- Max. flow: 75 l/min
