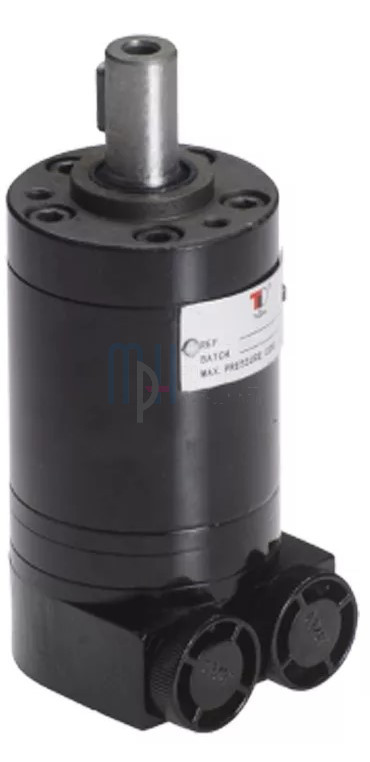

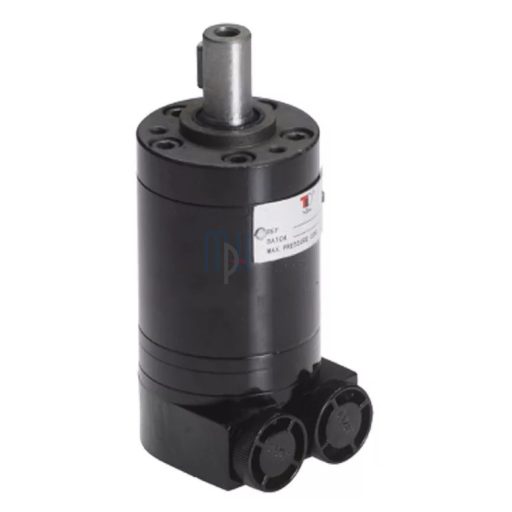

Hydraulic Motor MOMM8 S
Product Description:
The MOMM8 S is an extremely compact, low-displacement hydraulic motor, ideal for light-duty applications such as small machinery, feeder systems, and positioning mechanisms. The 16 mm shaft provides precise and reliable torque transmission, while the motor’s durable construction ensures long-term operational safety. The “S” designation refers to the side ports, equipped with 3/8” BSP connections. With a displacement of 8.2 cm³/rev, this motor is capable of high rotational speeds, making it a perfect choice for fast-operating hydraulic systems.
Main Features:
- Type: MOMM8 S
- Ports (IN/OUT): 3/8” BSP (Side port)
- Shaft design: 16 mm diameter shaft
- Displacement: 8.2 cm³/rev
- Max. operating pressure (continuous): 100 bar
- Intermittent pressure (P2): 140 bar
- Peak pressure (P3): 200 bar
- Maximum speed (continuous): 1950 rpm
- Maximum speed (intermittent): 2450 rpm
- Maximum torque (continuous): 1.1 Nm
- Maximum torque (peak): 2.1 Nm
- Maximum power: 1.8 kW
- Max. flow rate: 16 l/min
