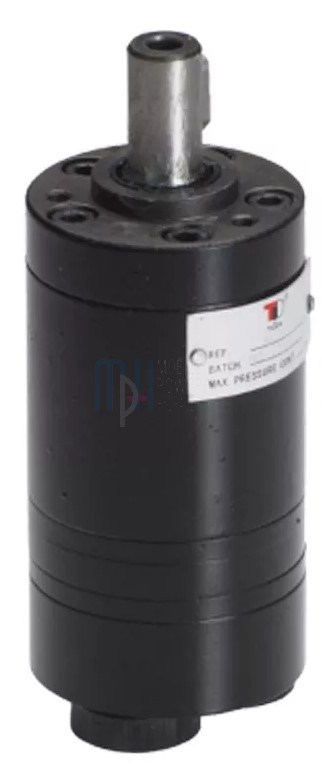

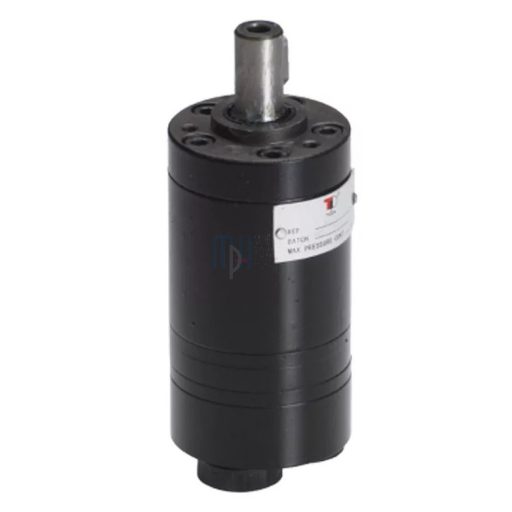

Hydraulic Motor MOMM8 E
Product Description:
The MOMM8 E is an extremely compact, low-displacement hydraulic motor, ideal for light-duty applications such as small machinery, feeder systems, or positioning units. The 16 mm shaft ensures precise and reliable torque transmission, while its durable construction provides long operational life. The “E” designation refers to the end ports, equipped with 3/8” BSP connections. With a displacement of 8.2 cm³/rev, this motor can achieve high rotational speeds, making it an excellent choice for faster-operating hydraulic systems.

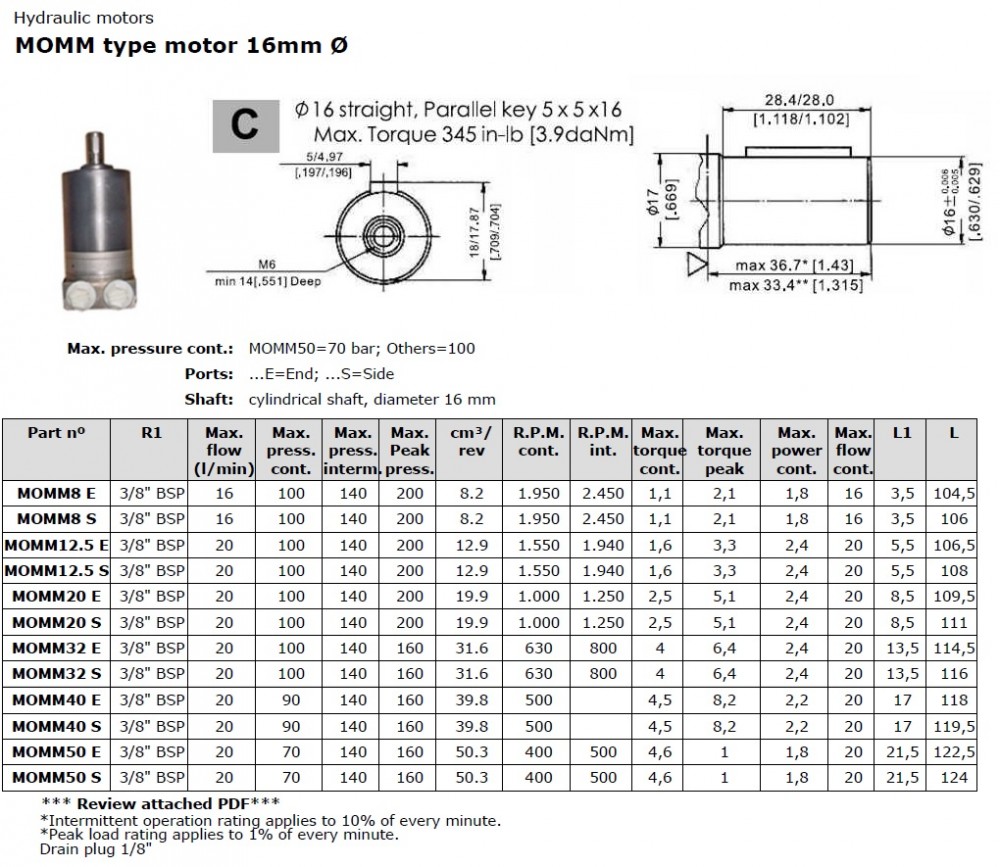

Main Features:
- Type: MOMM8 E
- Ports (IN/OUT): 3/8” BSP (End port)
- Shaft design: 16 mm diameter shaft
- Displacement: 8.2 cm³/rev
- Max. operating pressure (continuous): 100 bar
- Intermittent pressure (P2): 140 bar
- Peak pressure (P3): 200 bar
- Maximum speed (continuous): 1950 rpm
- Maximum speed (intermittent): 2450 rpm
- Maximum torque (continuous): 1.1 Nm
- Maximum torque (peak): 2.1 Nm
- Maximum power: 1.8 kW
- Max. flow rate: 16 l/min
