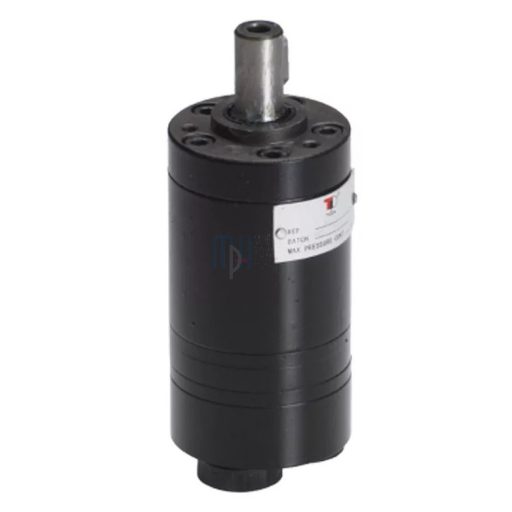

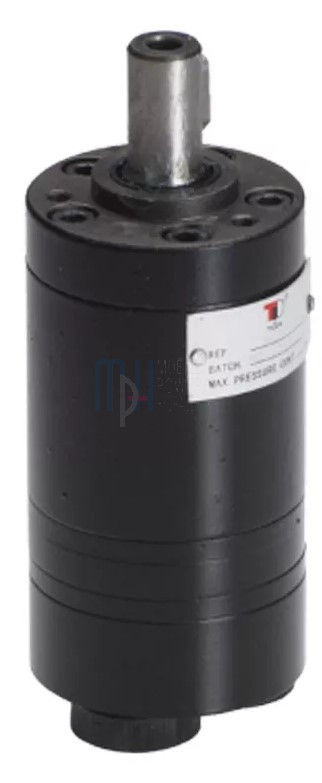

Hydraulic Motor MOMM32 E
Product Description:
The MOMM32 E is a medium-displacement, compact, and reliable hydraulic motor, ideal for light to medium-duty hydraulic drive applications. The 16 mm shaft ensures stable and precise torque transmission, while the motor’s robust construction guarantees long service life. The “E” designation indicates the end ports, featuring 3/8” BSP connections. With a displacement of 31.6 cm³/rev, this motor offers a balanced combination of torque and speed, making it suitable for a wide range of hydraulic applications.
Main Features:
- Type: MOMM32 E
- Ports (IN/OUT): 3/8” BSP (End port)
- Shaft design: 16 mm diameter shaft
- Displacement: 31.6 cm³/rev
- Max. operating pressure (continuous): 100 bar
- Intermittent pressure (P2): 140 bar
- Peak pressure (P3): 160 bar
- Maximum speed (continuous): 630 rpm
- Maximum speed (intermittent): 800 rpm
- Maximum torque (continuous): 4 Nm
- Maximum torque (peak): 6.4 Nm
- Maximum power: 2.4 kW
- Max. flow rate: 20 l/min
