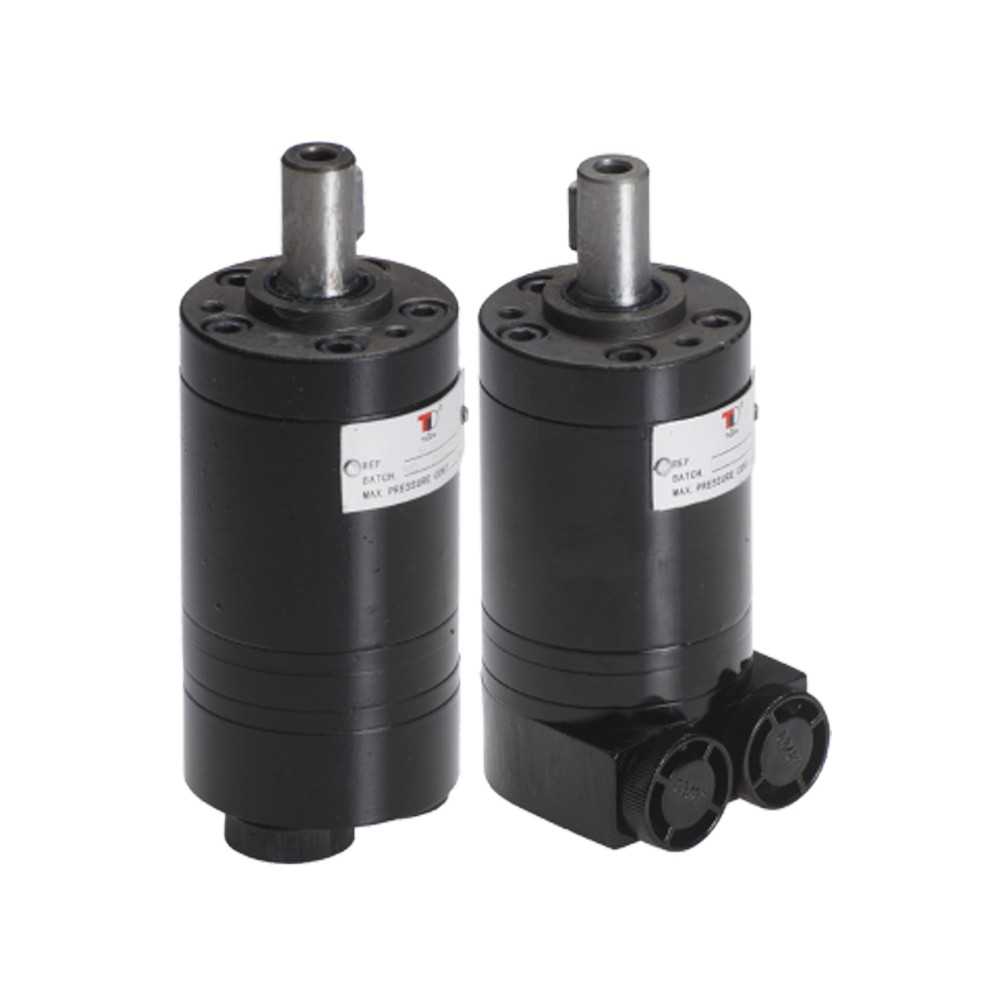

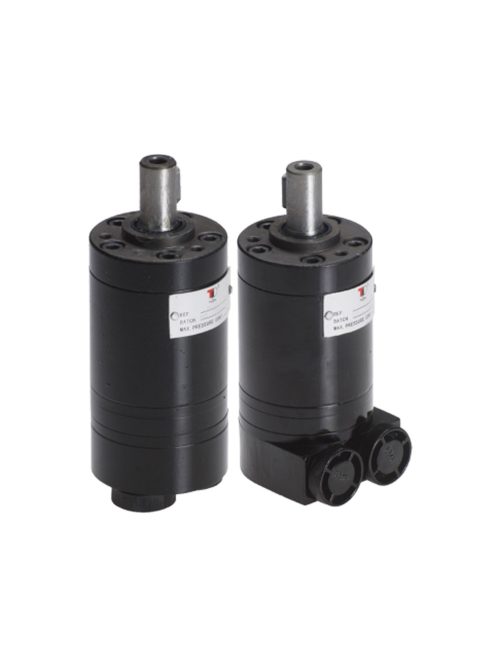

Hydraulic Motor MOMM12.5 E
Product Description:
The MOMM12.5 E is a compact, low-displacement hydraulic motor, ideal for light to medium-duty hydraulic drive applications. The 16 mm shaft ensures precise and reliable torque transmission, while the motor’s durable construction provides long service life. The “E” designation refers to the end ports, equipped with 3/8” BSP connections. With a displacement of 12.9 cm³/rev, this motor is an excellent choice for smaller hydraulic systems requiring high rotational speed and lower torque.

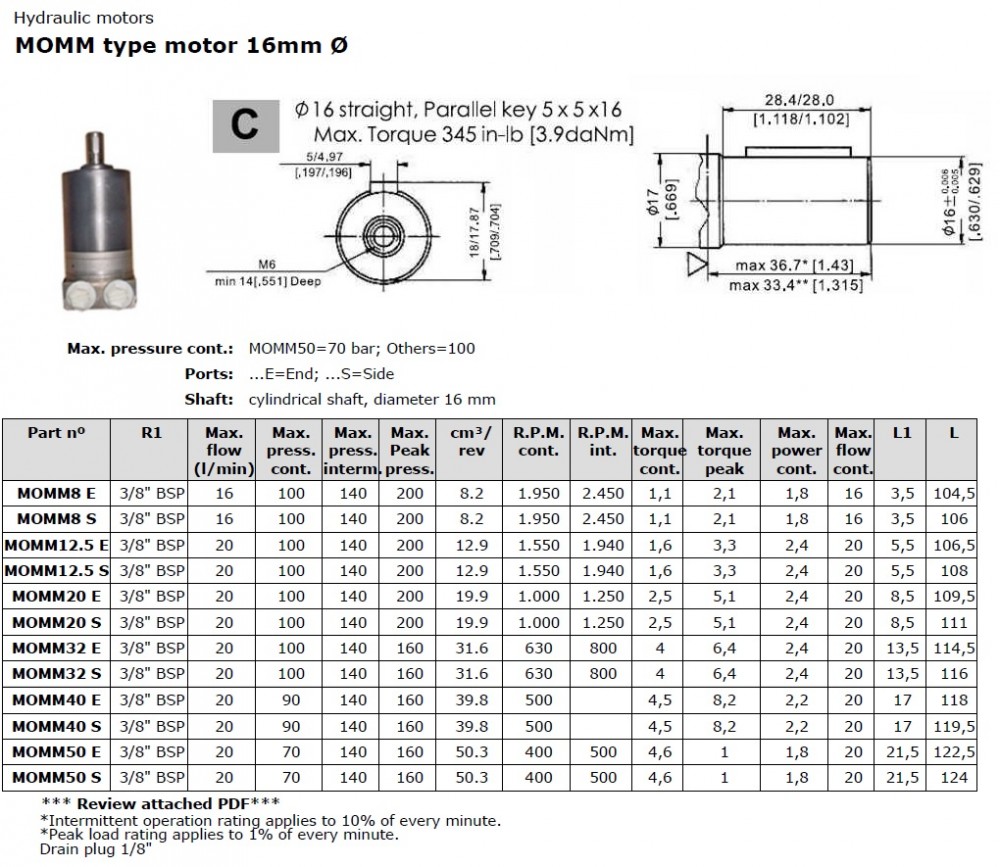

Main Features:
- Type: MOMM12.5 E
- Ports (IN/OUT): 3/8” BSP (End port)
- Shaft design: 16 mm diameter shaft
- Displacement: 12.9 cm³/rev
- Max. operating pressure (continuous): 100 bar
- Intermittent pressure (P2): 140 bar
- Peak pressure (P3): 200 bar
- Maximum speed (continuous): 1550 rpm
- Maximum speed (intermittent): 1940 rpm
- Maximum torque (continuous): 1.6 Nm
- Maximum torque (peak): 3.3 Nm
- Maximum power: 2.4 kW
- Max. flow rate: 20 l/min
