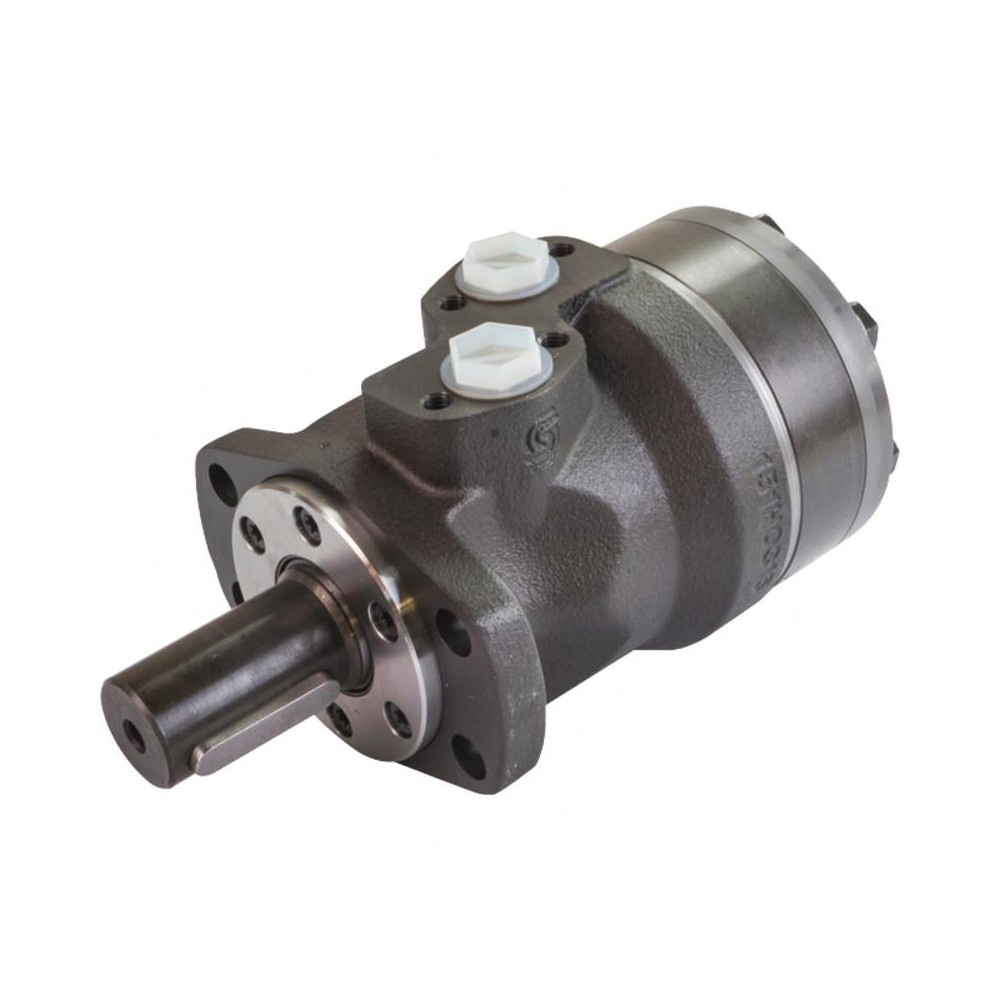

The OMH-500 ORBIT is a high-performance orbital hydraulic motor designed specifically for applications where high torque is required at low rotational speed. With a displacement of 470.6 cm³ and continuous torque up to 820 Nm, it is an ideal choice for driving agricultural as well as industrial and construction machinery. The motor features a 35 mm cylindrical shaft and a 4-bolt A4-type SAE-Magneto flange, making installation straightforward on a variety of machines. Its maximum operating pressure is 125 bar, and it can handle oil flows of up to 75 litres per minute, ensuring efficient operation in diverse hydraulic systems. The direction of rotation is selectable (right- or left-hand), enabling flexible use across multiple machine types, while its robust build delivers a reliable, long-service solution for users requiring stable and powerful drive performance in demanding hydraulic applications.
