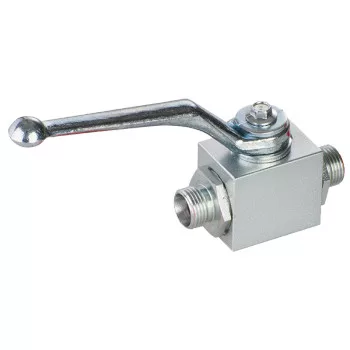

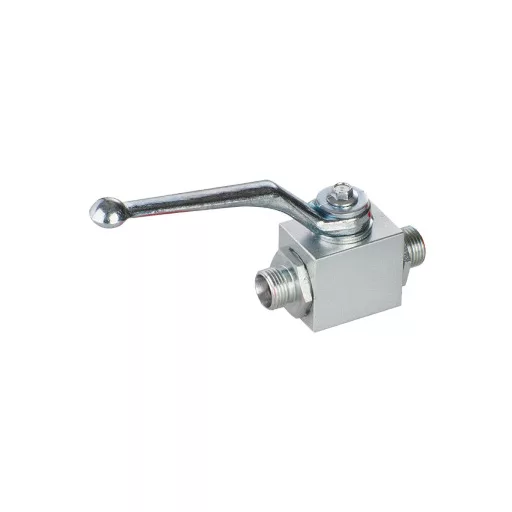

HYDRAULIC 2 WAYS BALL VALVE 22L OUTER THREAD

Name: HYDRAULIC 2 WAYS BALL VALVE 22L OUTER THREAD
Brand: GEMELS
SKU: HK_GE2DDL64011A000
Price: 64 EUR
Availability: InStock

Type of valve: System integrable valve

Type of block: Ball valve

Max. pressure: 400 bar

Connection: M30X2

Max. flow rate: N/A

Pipe / Hose connection: Metric

Pipe / Hose connection size: DN 20

Thread location: OUTER

Seal: NBR: +100°C / -20°C

Manufacturer: GEMELS

Datasheet: Kattintson ide a letöltéshez

In stock

50 €+VAT

Item number:

HK_GE2DDL64011A000

GE2 22L DIN 2353 L – 2-way ball valve

Product description:

The GE2 22L 2-way ball valve is designed for hydraulic systems with DIN 2353 L (Light Series) connections, providing safe and reliable opening and shut-off of hydraulic flow. It features a carbon steel housing with a high load capacity design, ensuring dependable operation in truck hydraulic systems and industrial applications.

Key features:

Type: 2-way ball valve
Part number: GE2DDL64011A000
Connection: DIN 2353 L (Light Series)
Nominal diameter (DN): 22
Maximum operating pressure: 420 bar
Housing material: Carbon steel
Weight: 1.463 kg

Details

Operating principle

Inside the valve, a perforated ball can be rotated 90° using a handle to open or close the flow. When open, the hole aligns with the flow path, allowing fluid to pass through freely; when closed, the solid side of the ball blocks the flow.

This simple mechanical action offers fast and reliable control. Such valves are ideal for securely isolating a flow direction in applications like cylinders or branching circuits.
